Test email showing error message "Failure sending mail"

******Internal to CitiXsys******

Environment:

iVend Version 6.6 with SAP B1 10

Problem Statement:

Test email showing error message "Failure sending  mail"

Symptoms:

Test email showing error message "Failure sending mail". below error message show in MC log file.

<Event>

      <Version>6.6.8364.29760</Version>

      <Category>ERROR</Category>

      <Time>1:57:08 AM</Time>

      <Message>Failure sending mail.</Message>

      <ExceptionInfo>

        <Type>System.Net.Mail.SmtpException</Type>

        <Message>Failure sending mail.</Message>

        <Source>System</Source>

        <TargetSite>Void Send(System.Net.Mail.MailMessage)</TargetSite>

        <StackTrace>   at System.Net.Mail.SmtpClient.Send(MailMessage message)

   at CXS.SubSystem.Loyalty.LoyaltyEmailClass.SendMail(String host, String SMTPUserName, String SMTPPassword, Int32 port, Boolean useSSL, Boolean isAlternateView)</StackTrace>

        <InnerExceptionInfo>

          <Type>System.ComponentModel.Win32Exception</Type>

          <Message>The client and server cannot communicate, because they do not possess a common algorithm</Message>

          <Source>System</Source>

          <TargetSite>System.Net.SafeFreeCredentials AcquireCredentialsHandle(System.Net.SSPIInterface, System.String, System.Net.CredentialUse, System.Net.SecureCredential)</TargetSite>

          <StackTrace>   at System.Net.SSPIWrapper.AcquireCredentialsHandle(SSPIInterface SecModule, String package, CredentialUse intent, SecureCredential scc)

   at System.Net.Security.SecureChannel.AcquireCredentialsHandle(CredentialUse credUsage, SecureCredential&amp; secureCredential)

   at System.Net.Security.SecureChannel.AcquireClientCredentials(Byte[]&amp; thumbPrint)

   at System.Net.Security.SecureChannel.GenerateToken(Byte[] input, Int32 offset, Int32 count, Byte[]&amp; output)

   at System.Net.Security.SecureChannel.NextMessage(Byte[] incoming, Int32 offset, Int32 count)

   at System.Net.Security.SslState.StartSendBlob(Byte[] incoming, Int32 count, AsyncProtocolRequest asyncRequest)

   at System.Net.Security.SslState.ForceAuthentication(Boolean receiveFirst, Byte[] buffer, AsyncProtocolRequest asyncRequest)

   at System.Net.Security.SslState.ProcessAuthentication(LazyAsyncResult lazyResult)

   at System.Threading.ExecutionContext.RunInternal(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx)

   at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state, Boolean preserveSyncCtx)

   at System.Threading.ExecutionContext.Run(ExecutionContext executionContext, ContextCallback callback, Object state)

   at System.Net.TlsStream.ProcessAuthentication(LazyAsyncResult result)

   at System.Net.TlsStream.Write(Byte[] buffer, Int32 offset, Int32 size)

   at System.Net.PooledStream.Write(Byte[] buffer, Int32 offset, Int32 size)

   at System.Net.Mail.SmtpConnection.Flush()

   at System.Net.Mail.ReadLinesCommand.Send(SmtpConnection conn)

   at System.Net.Mail.EHelloCommand.Send(SmtpConnection conn, String domain)

   at System.Net.Mail.SmtpConnection.GetConnection(ServicePoint servicePoint)

   at System.Net.Mail.SmtpClient.GetConnection()

   at System.Net.Mail.SmtpClient.Send(MailMessage message)</StackTrace>

        </InnerExceptionInfo>

      </ExceptionInfo>

    </Event>

Resolution/Work Around:

Follow the below steps.

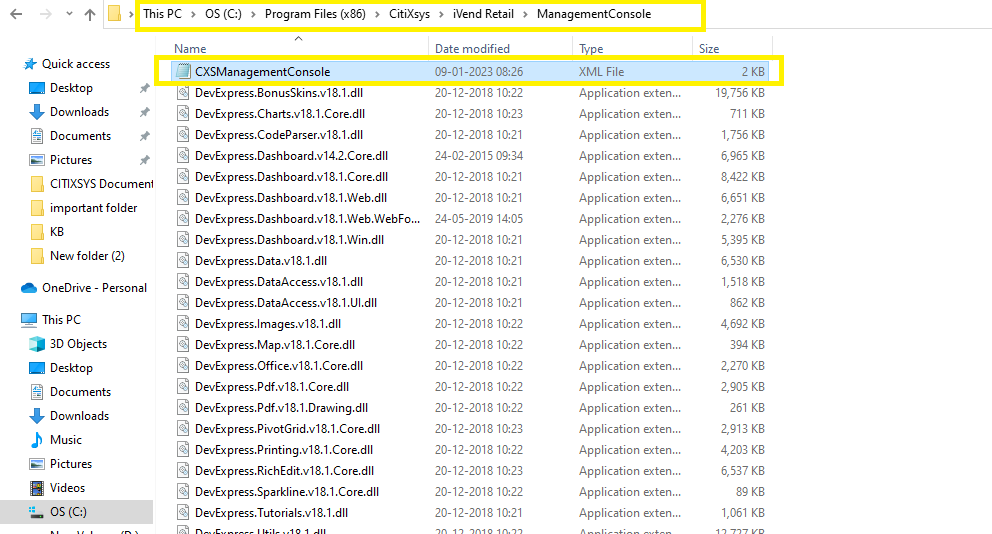

1.Follow the below path.

C:\Program Files (x86)\CitiXsys\iVend Retail\ManagementConsole

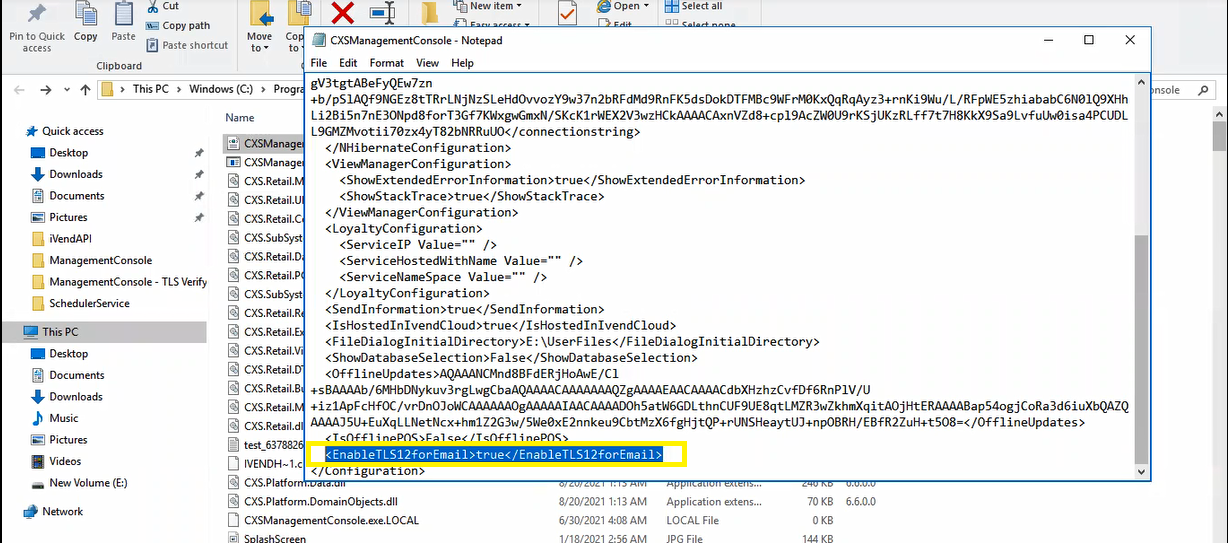

2.Open the CXSManagementconsole.xml file.

3.Enable the TLS12 forEmail.

<EnableTLS12forEmail>true</EnableTLS12forEmail>

Recommendations /Suggestion:

Minimum patch required for this setting to work with MC is 8379.

Note:Make sure backup should be taken before replacing the file.
