iVend Retail – X-Tape Report

In iVend Retail the X-Tape report enables the POS user to see a summary of the POS Till in use.

The X-Tape report is available from the Point of Sale “User Menu”.

This is accessed by clicking on the iVend Retail Logo located in the top left-hand corner of the POS screen.

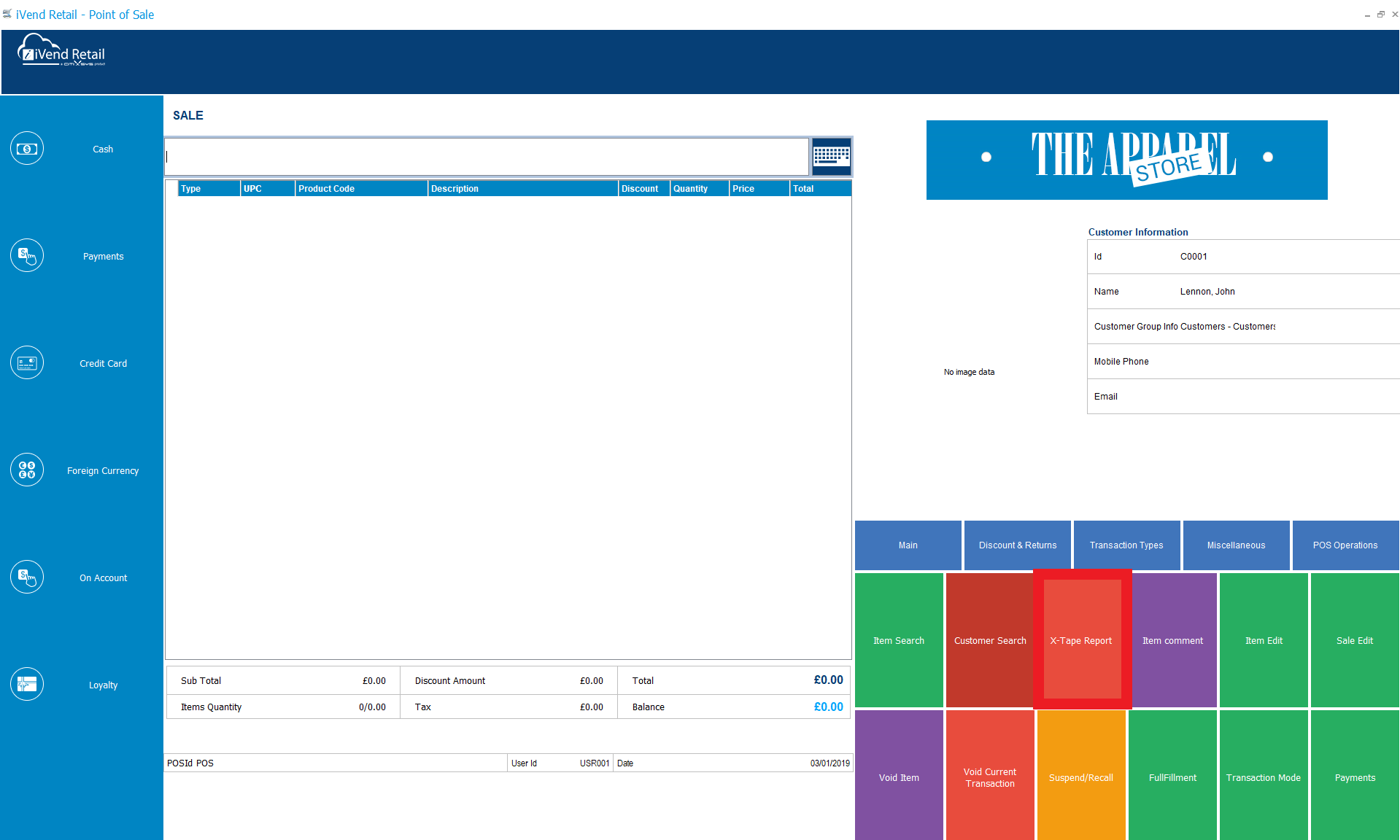

Figure 1 iVend POS

Alternatively, a button could be added to the POS Screen itself, using the “POS Customisation” features that come built-in with iVend Retail.

Figure 2 POS Customization

Opening the X-Tape report will display a summary of Payment Types received in the top grid of the screen and will display the Transaction Types in the bottom grid of the screen.

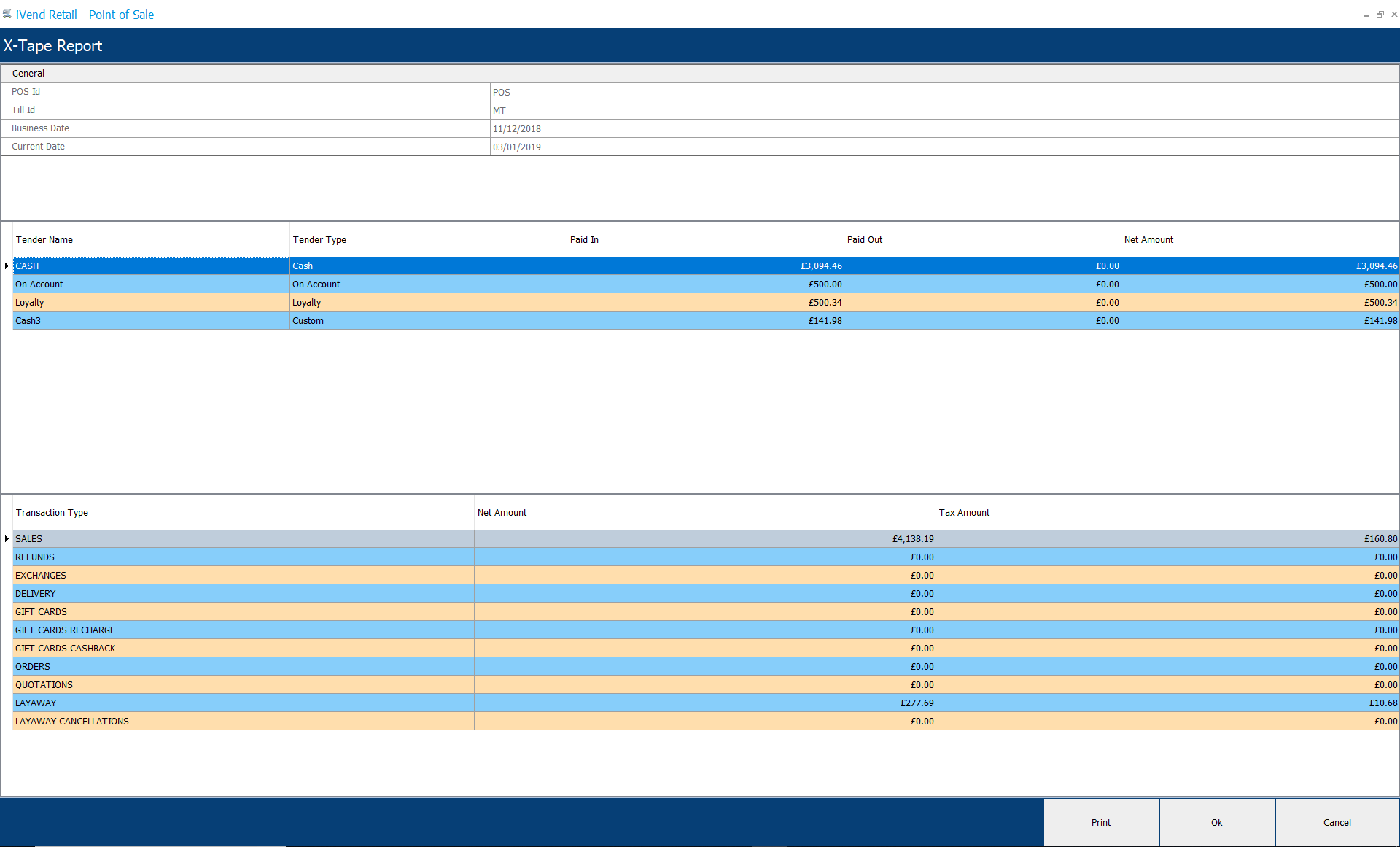

Figure 3 X-Tape Report

Selecting the [Print] button will print the X-Tape report.

Settings for printing this will print based on the X-Tape report can be found in the “Print Profile” located in the Management Console under the path: Administration > Retail Configuration > Print Profile. Select a Print Profile from the Search screen and press the [F4 Edit] button to edit the profile or the [F7 View] button if you just wish to view the settings without making any changes.

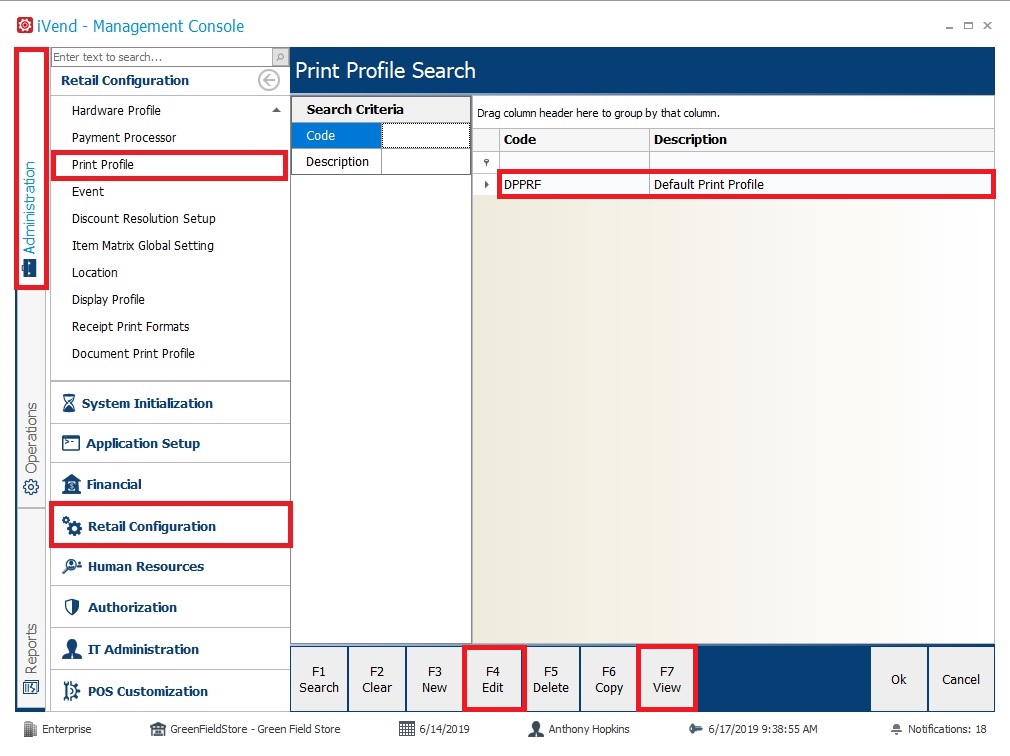

Figure 4 Print Profile Search

For the Print type A4 Report the user should have rights for the reports. The Rights for X-Tape Report can be viewed in the User Authorization report.

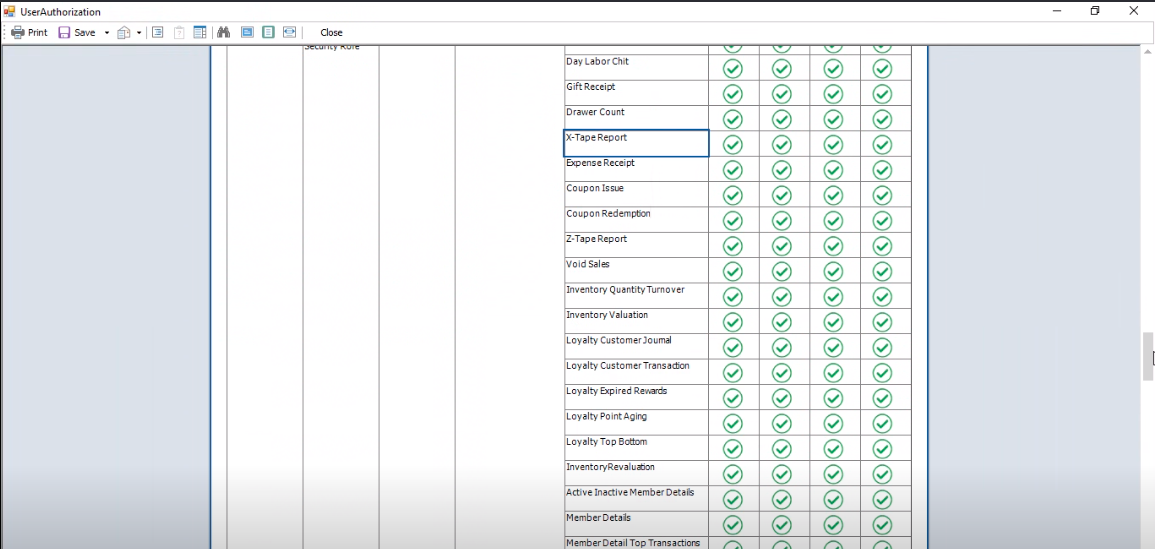

Figure 5 User Authorization

For the X-Tape Print Type A4 Report, Report Id is will be visible only if the user has the X-Tape Report Authorization.

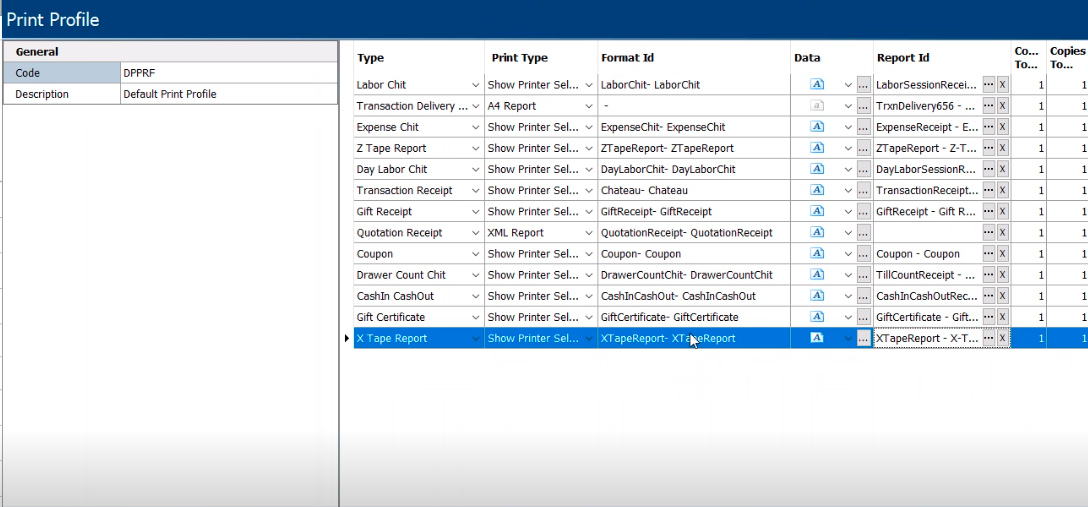

Figure 6 Print Profile

For the X-Tape Print Type XML Report, Report Id not mandatory for X-Tape Report Authorization.

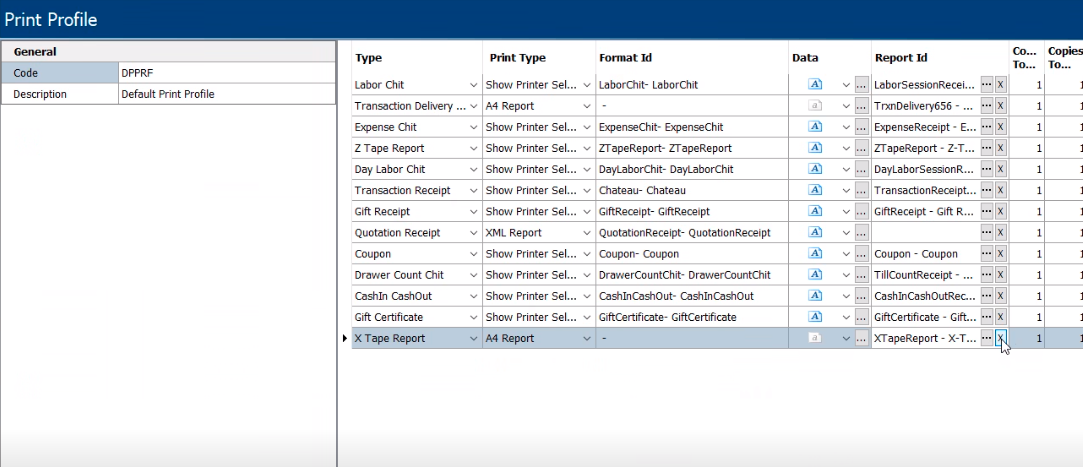

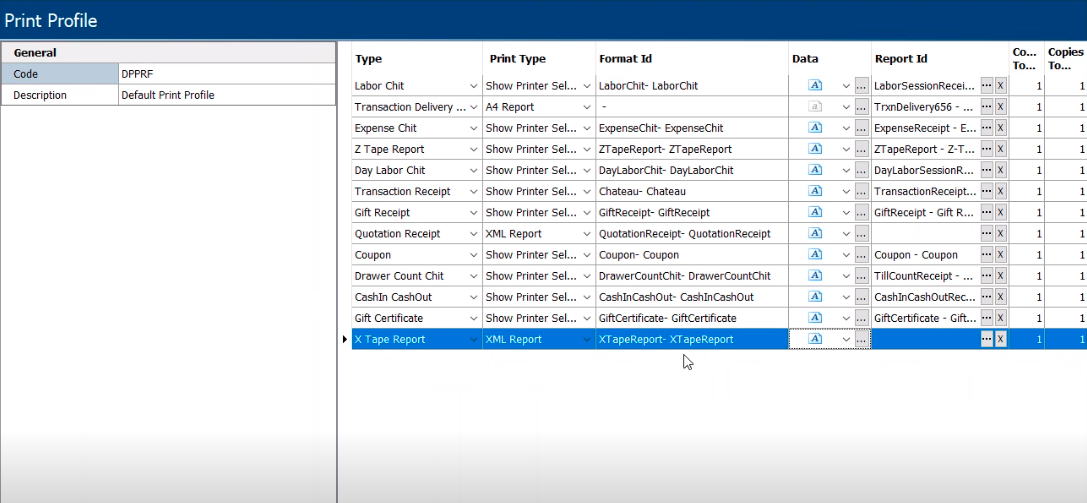

Figure 7 Print Profile-X-Tape

For the X-Tape Print Type Show Printer Selection, Report Id is mandatory for X-Tape Report Authorization

.

Figure 8 Print Profile
