Steps to change the size of the displayed image of products at POS

Steps to change the size of the displayed image of products at POS

Environment:

iVend 6.6

Problem Statement:

What are the steps to change the size of the displayed image of products at POS

Solution:

Please follow the below steps to change the size of the displayed image of products at POS: -
1. Open Enterprise Management console.
2. choose Administration > Retail Configuration > Retail Profile and look for row "POS Layout".



3. click on edit and edit the layout attached to the retail profile.
4. click on POS designer > customization > layout tree view > product image control

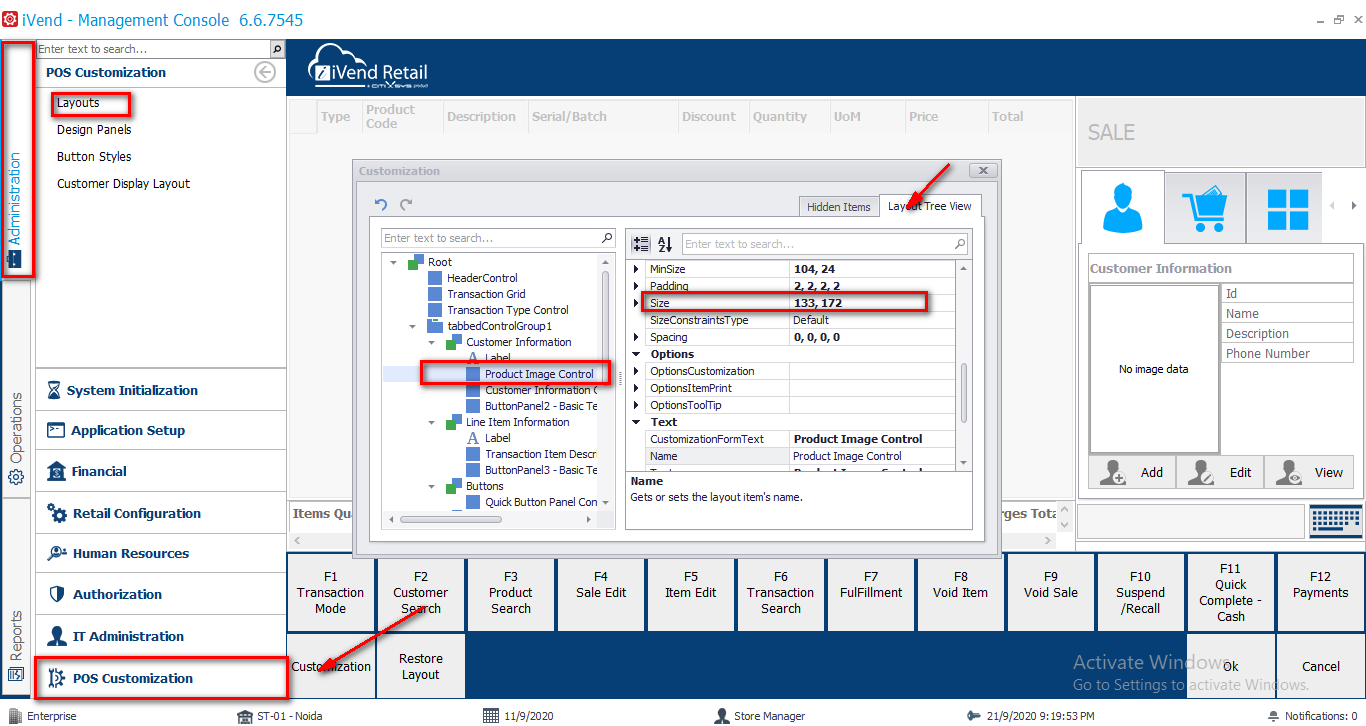

5. Look for the row "Size" (Refer the attached image), from here one can change the image size as per their requirement.
