iVend POS - Report with Parameters
Report with Parameters
This article provides the basic steps for creating a Report with Parameters.
- Create a report or open an already created one. Click on Dictionary.

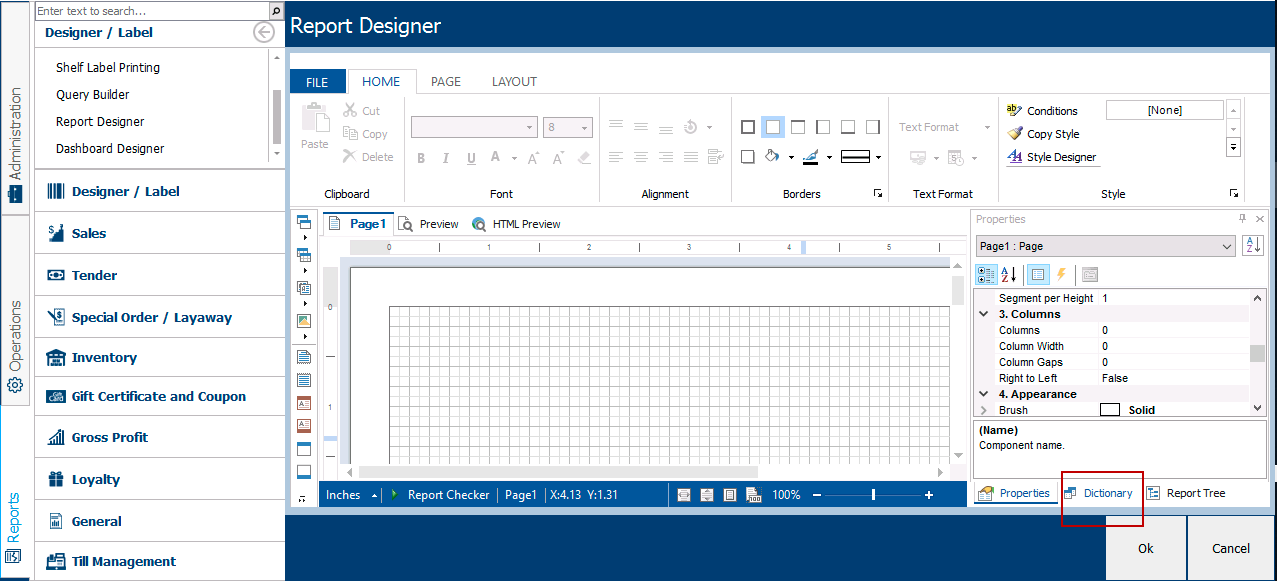

Figure 1 Report Designer
- Click on Data Sources and select New Data Source

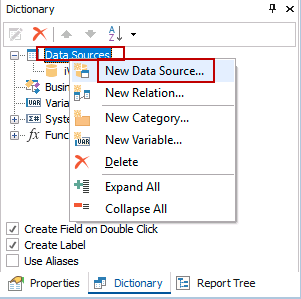

Figure 2 Dictionary- New Data Source

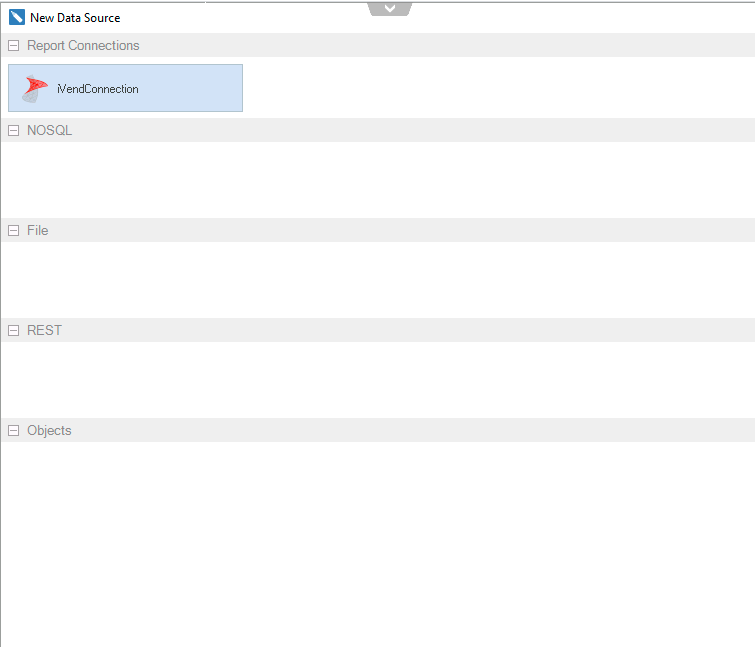

- Click on New Data source> iVend Connection
Figure 3 New Data Source

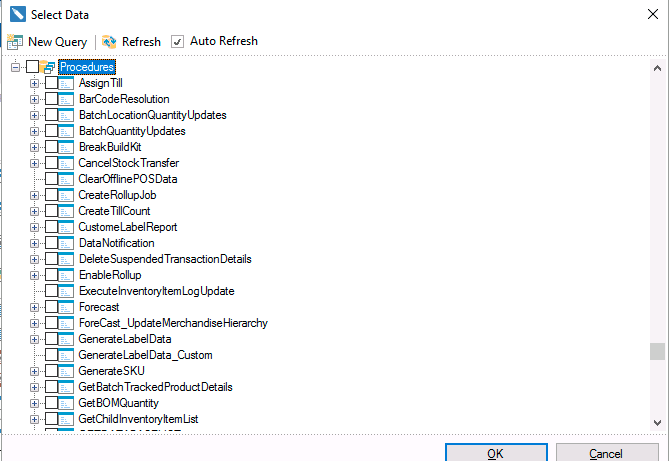

- Click on New Query on the Select DATA Screen.
Figure 4 Select Data
- On the New Data source enter the parameter name and insert query “Select Id, Description from InvProduct where Id=@Product. Click on the icon New Parameter

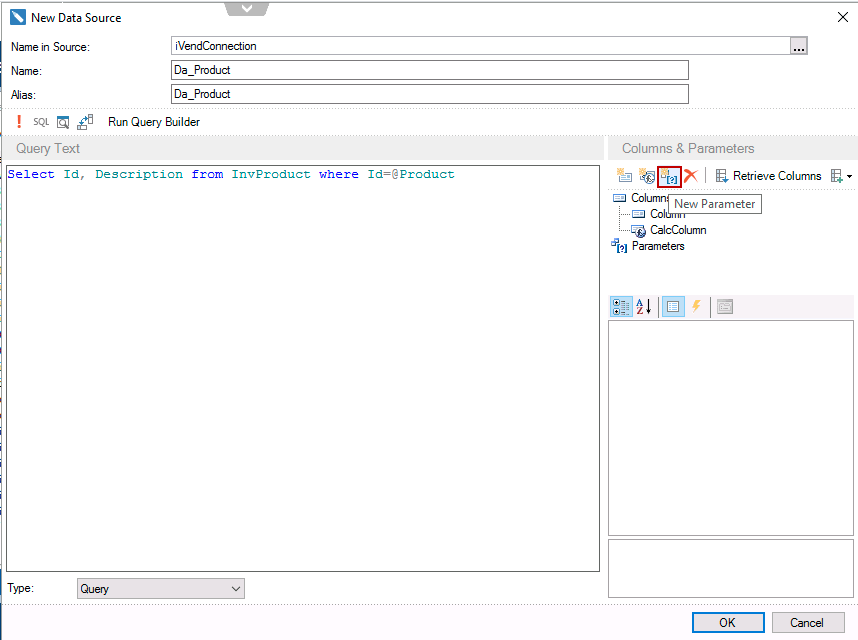

Figure 5 New Data Source- New Parameter

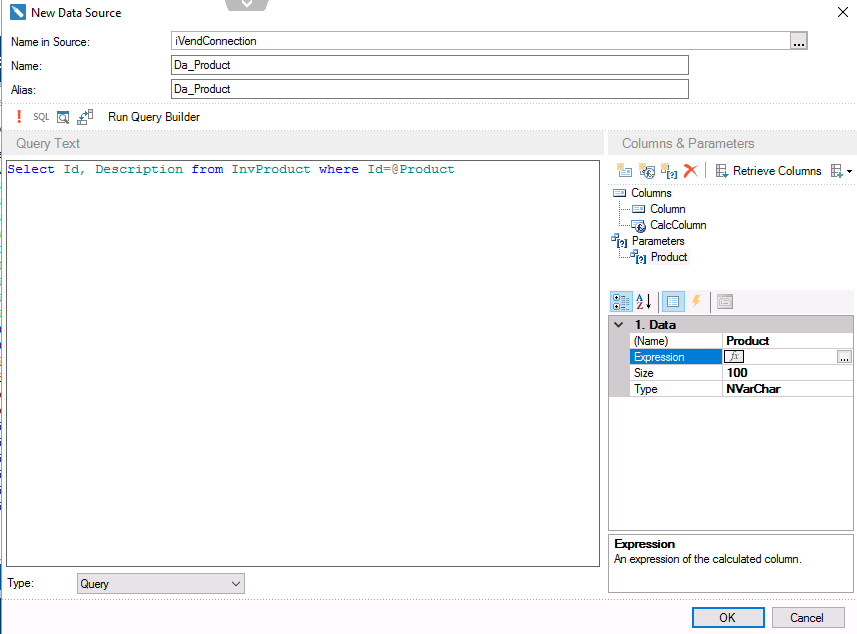

- The Id name should be equivalent to the Name on the right pane. The Size defined should be equivalent to size of the Id column in database. Also the data Type should be same as of the Id . The value in Expression are the once defined in variable.
Figure 6 Data source expression

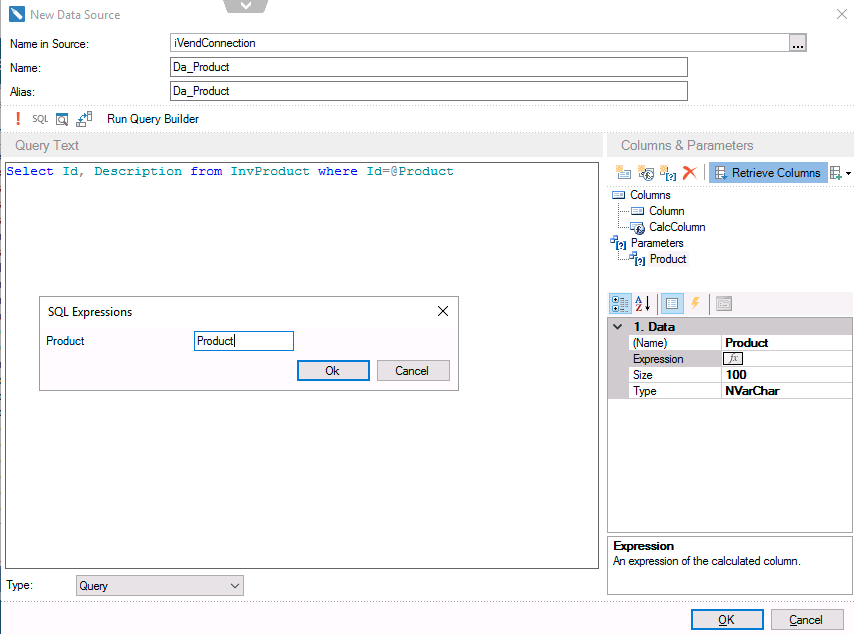

- Click on the Retrieve Column button.
Figure 7 SQL Expression -Product

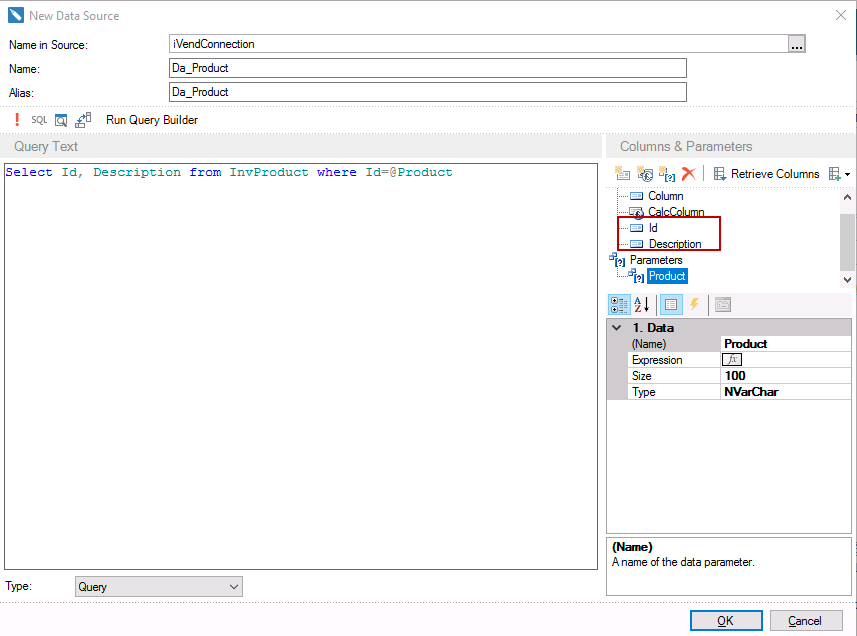

- Enter the Product name and click Ok. The dataset for the products appears.
Figure 8 Data Source ID and Description

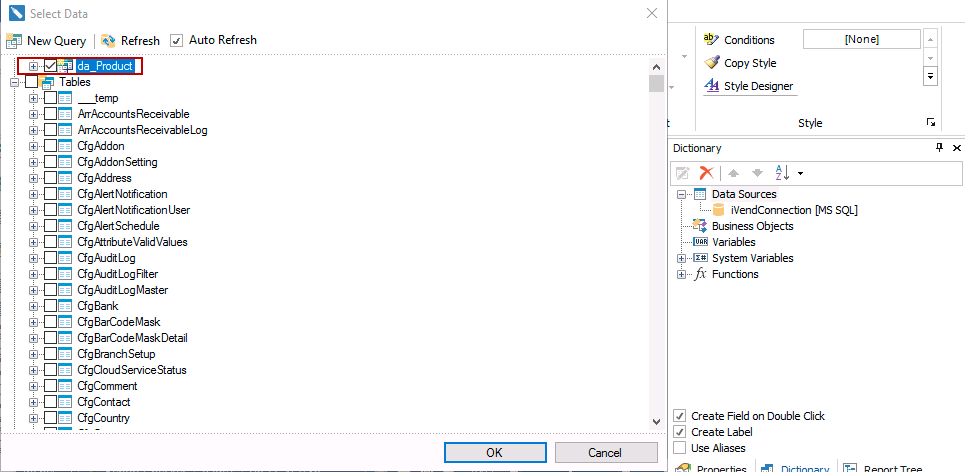

- New Data appears on the Select Data Screen.
Figure 9 New Data Source
- New added Product data gest displayed with the parameter values.

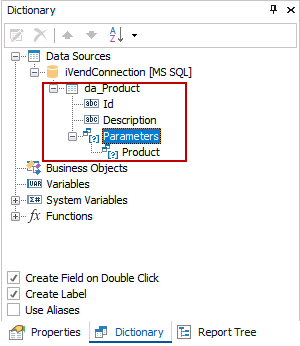

Figure 10 Dictionary Parameters
- Click on Variable to create a new variable

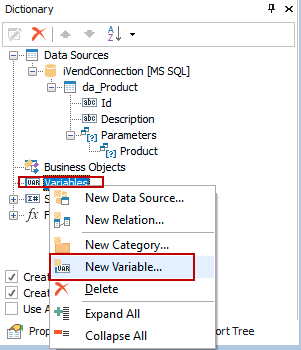

Figure 11 New Variable
- Name of the variable should be same as Name of Parameter and type in Parameter should be same as type in Variable. Enter the Product Value and click ok.

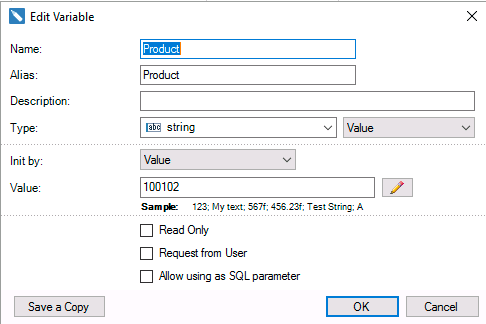

Figure 12 Edit Variable
- The Product gets added to the Variable

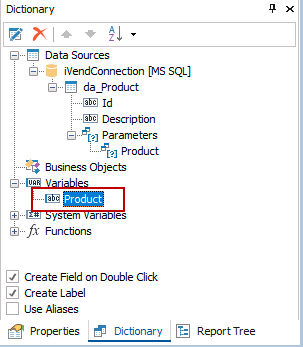

Figure 13 Dictionay -product
