How to Resolve Timeout Expired Error

How to Resolve Timeout Expired Error

How to Resolve Timeout Expired Error

This knowledge base article will assist you in resolving the Timeout Expired error, which is a common error that occurs in .IRT extension type reports (iVend Retail Report Designer reports). Going through this article, you will learn about the error overview, the reason for the error and the solution to resolve the error.

Overview

The iVend Database and SQL Database remain connected and the reports synchronise automatically. There are a few common errors that are observed when the connection string doesn’t refresh between the iVend Retail Database and the SQL Server.

Reason

This error occurs when the report is running and is taking a long time to fetch the data, which causes the connection to the SQL Server session to break.

The following screen image illustrates the Timeout Expired error.

​

Solution

Follow these steps to resolve the Timeout Expire error:

1. Open the report in iVend Reports Designer.

2. Expand the iVendConnection [SQL Connection] under the Data Source.

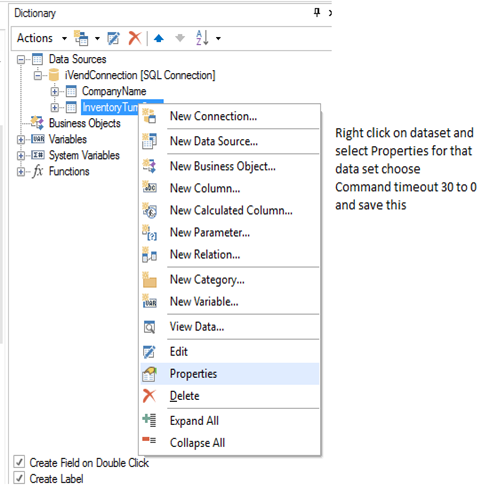

3. Right-click on the existing dataset and select Properties from the Dictionary pod.

4. Change the Command Timeout from 30 to 0 in the Properties pod.

Refer the following screen images for further guidance on the steps required:

Figure 1 New Connection

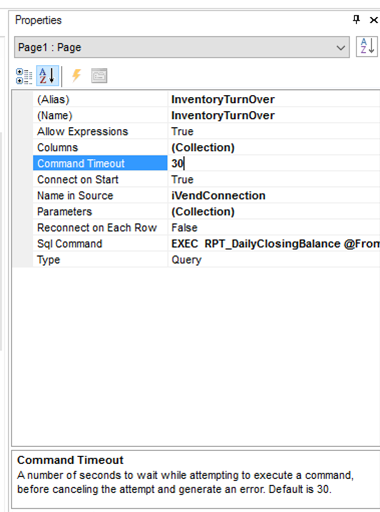

Figure 2 Properties- Command Timeout

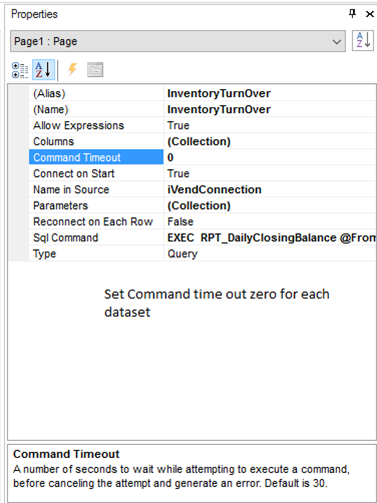

Figure 3 Properties- Command Timeout
