How to add or Change Transaction Receipt XML ?
Query:
How to add or Change Transaction Receipt XML ?
Resolution :
Below are the suggested steps for adding new fields on Receipt where properties available or not.

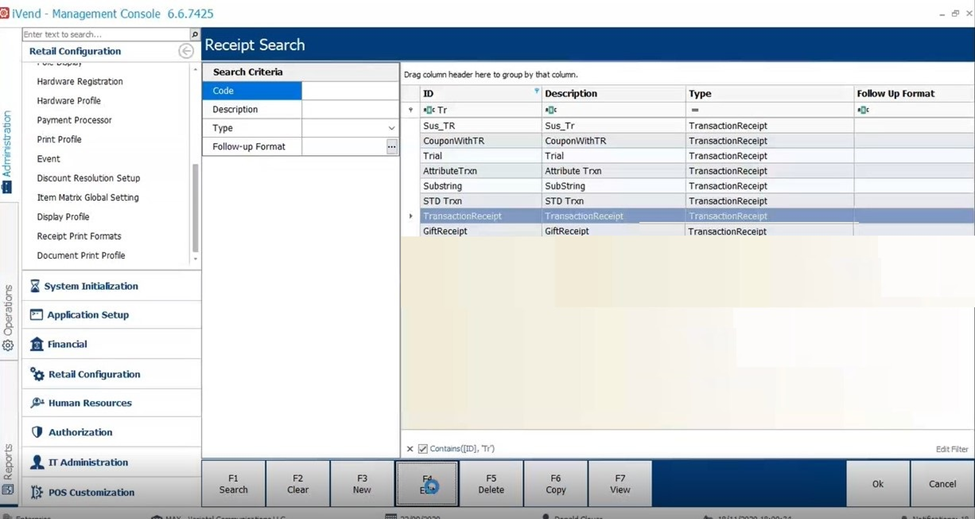

Sceen shot 1: Open MC and Open Receipt Search

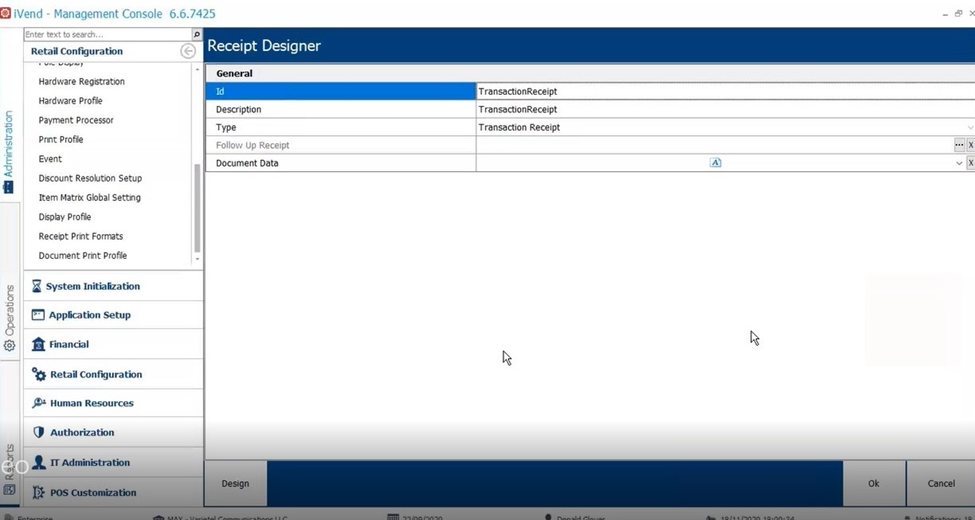

Screen Shot 2: Select the Receipt Designer – Transaction Receipt and click on Design.

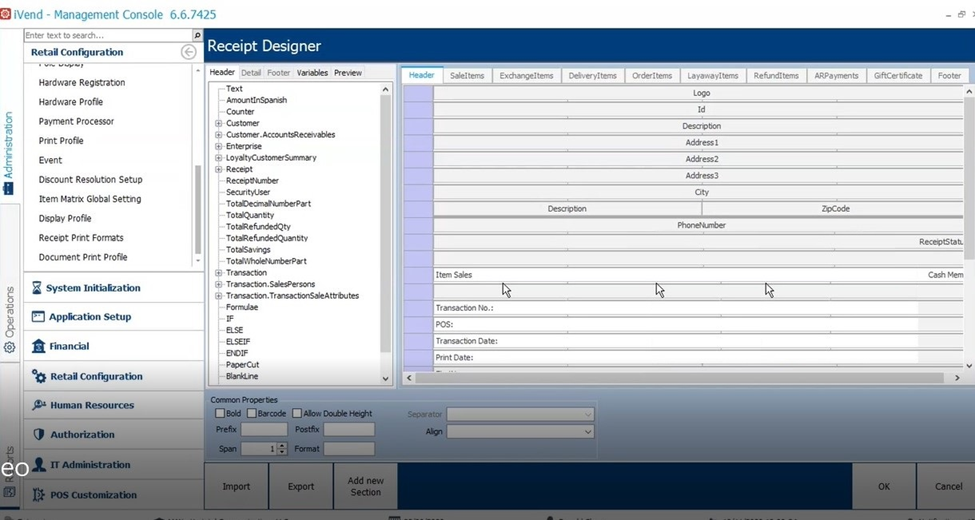

Screen Shot 3: Receipt Designer will open
Screen shot 4: Choose the header to add the additional information /details required on Receipt.

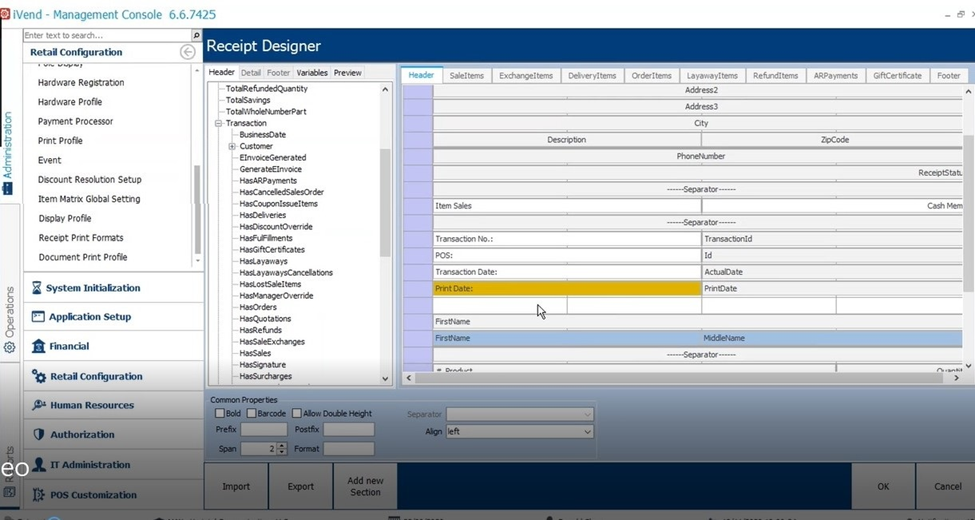

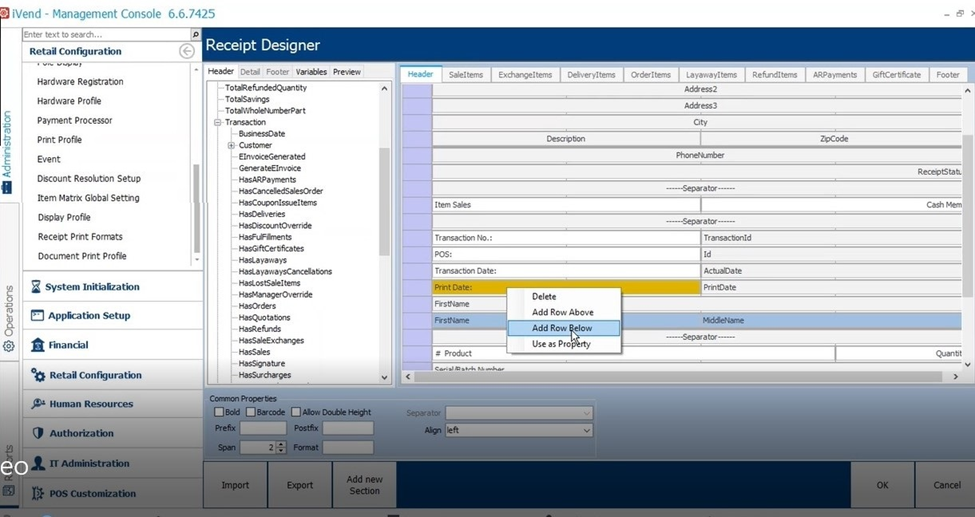

Screen Shot 5: Choose the place where you would like to add the new Field and Click Add Row Below/Above.

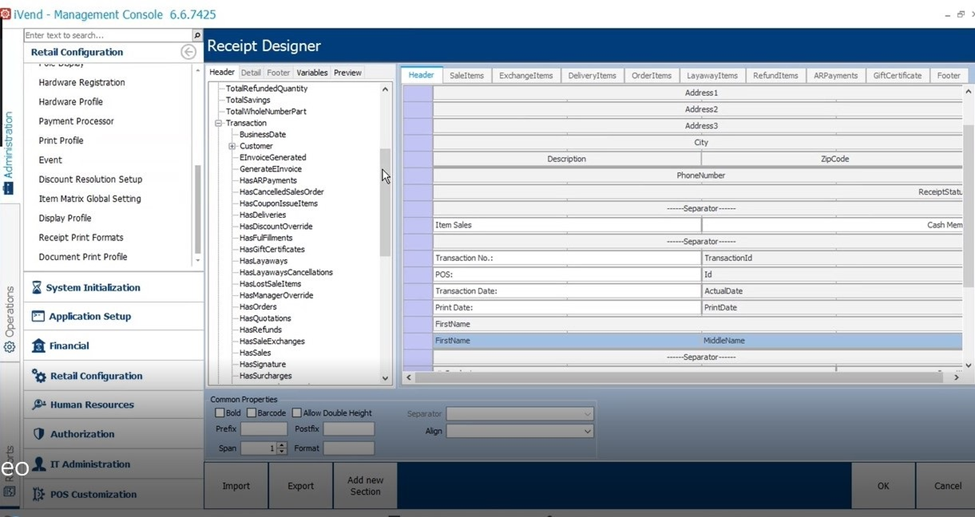

Screen shot 6: Here New Row created between Print Date and First name to use our additional details.

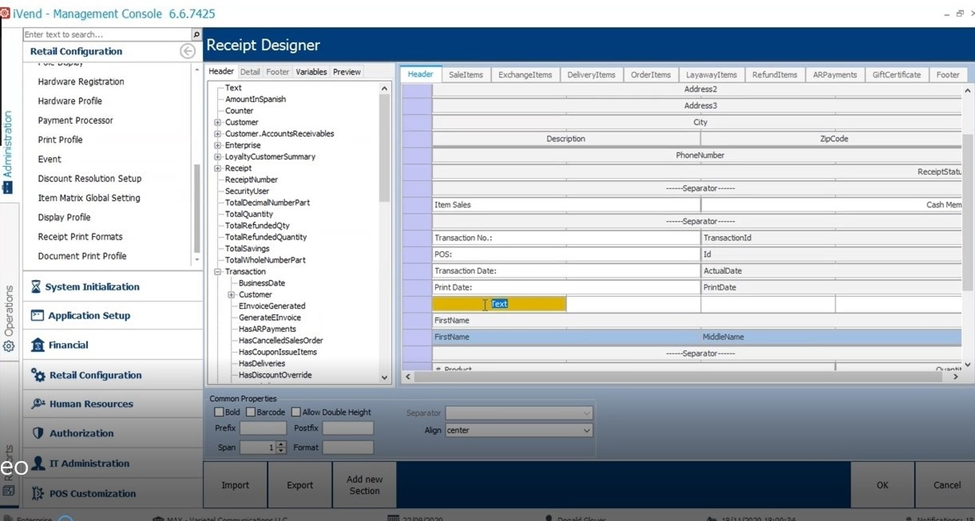

Screen shot 7: If we are missing Property, however details exist in Table (Example – TrxTransaction) - Choose the Text option from Top.

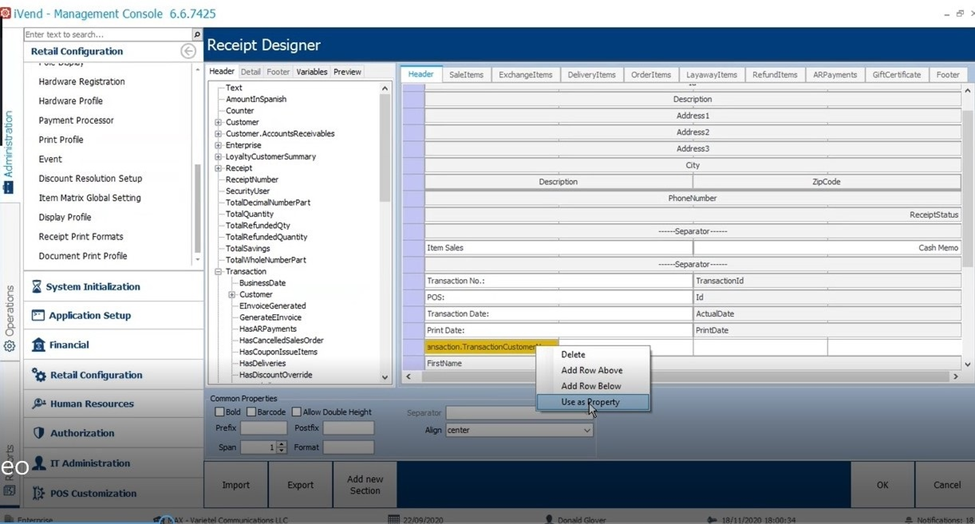

Screen Shot 8: On this Text, add the Values and new Field name which you want to add (example – Transaction Customername). Right Click on this field and choose and make Use a Property.

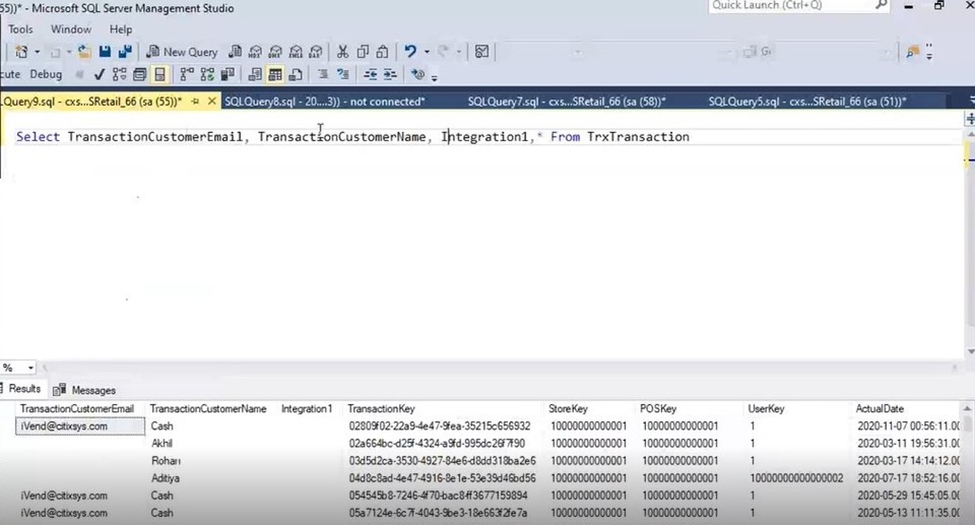

Screen shot 9: For Example – We have TransactionCustomerEmail, TransactionCustomerName and Integration1 fields on TrxTransaction Table.

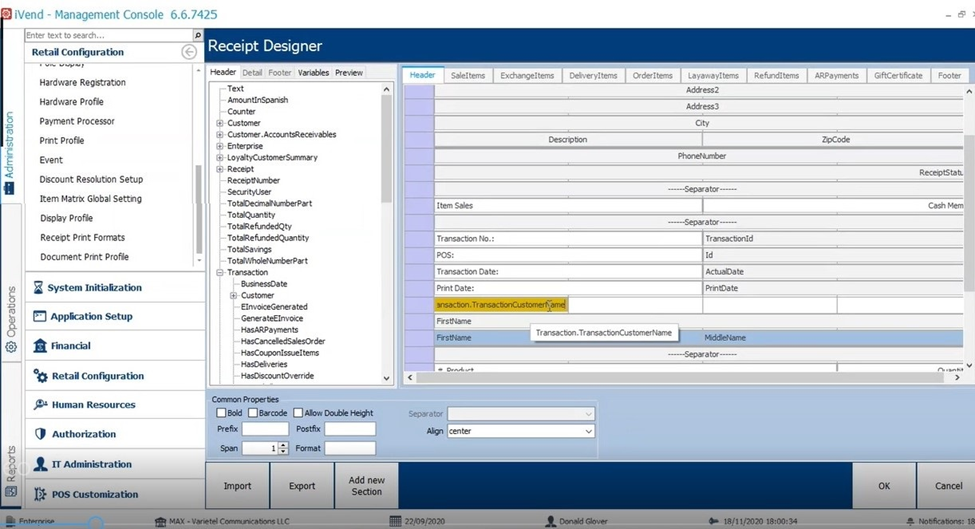

Screen shot 10: As Field is case sensitive – Choose and paste the “TransactionCustomerName” including Transaction. Transaction means TrxTransaction here.
Screen shot 11: Go to Preview option to see the changes we made on Receipt.

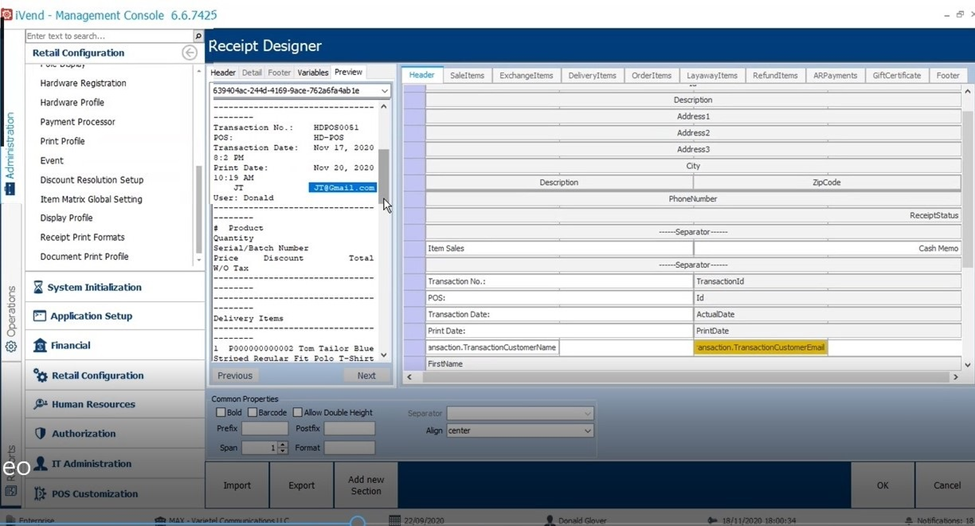

Screen shot 12: Added Transaction.TransactionCustomerEmail as well and visible on Receipt Preview.
As suggested above, anyone can change and add new fields on Transaction receipt.
