How to Add New Dataset in Existing Report

How to Add New Dataset in Existing Report

How to Add New Dataset in Existing Report



If User wants to add some column in iVend existing report, then follow below step:

  1. Export the report and open the Report in Report Designer.



  1. Add new dataset as per required column, E.g. in this tutorial I have added Vendor table and use vendor name in “SalesByItem” report.

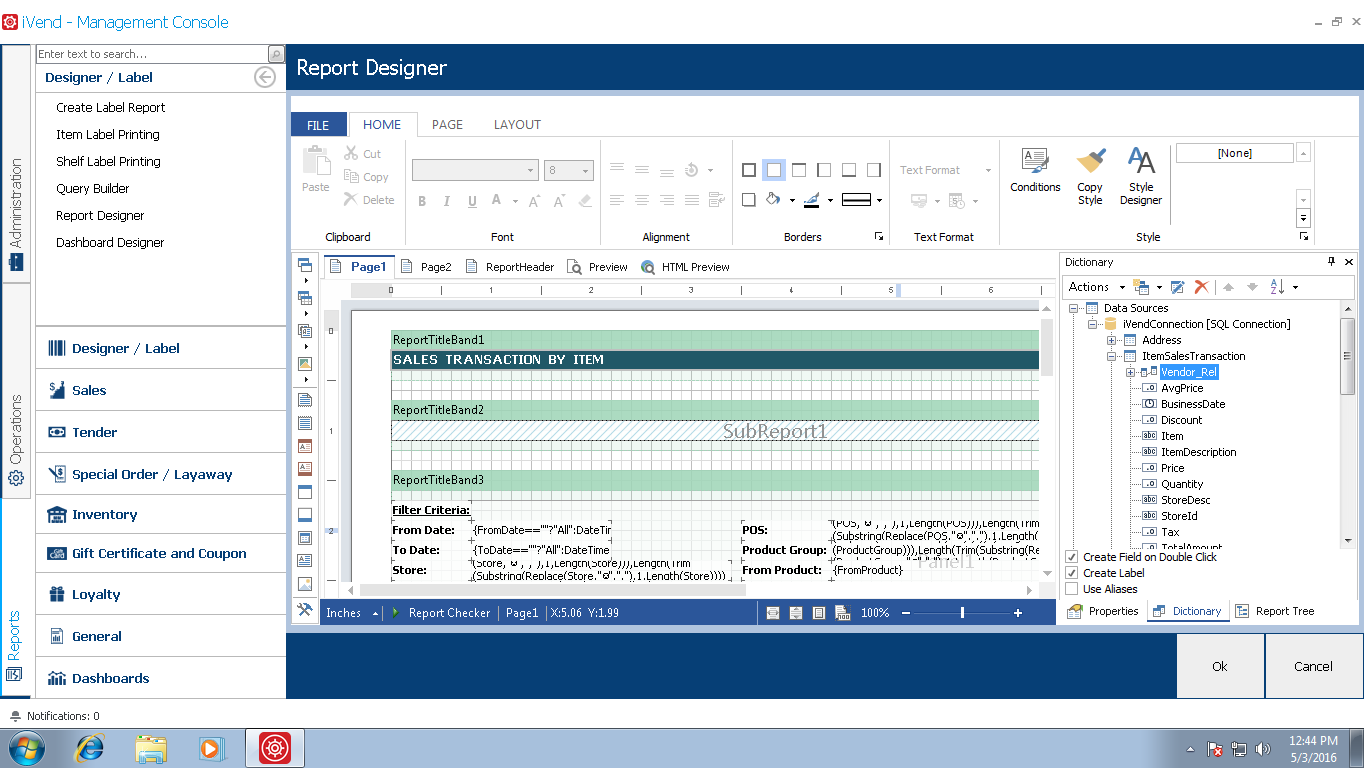

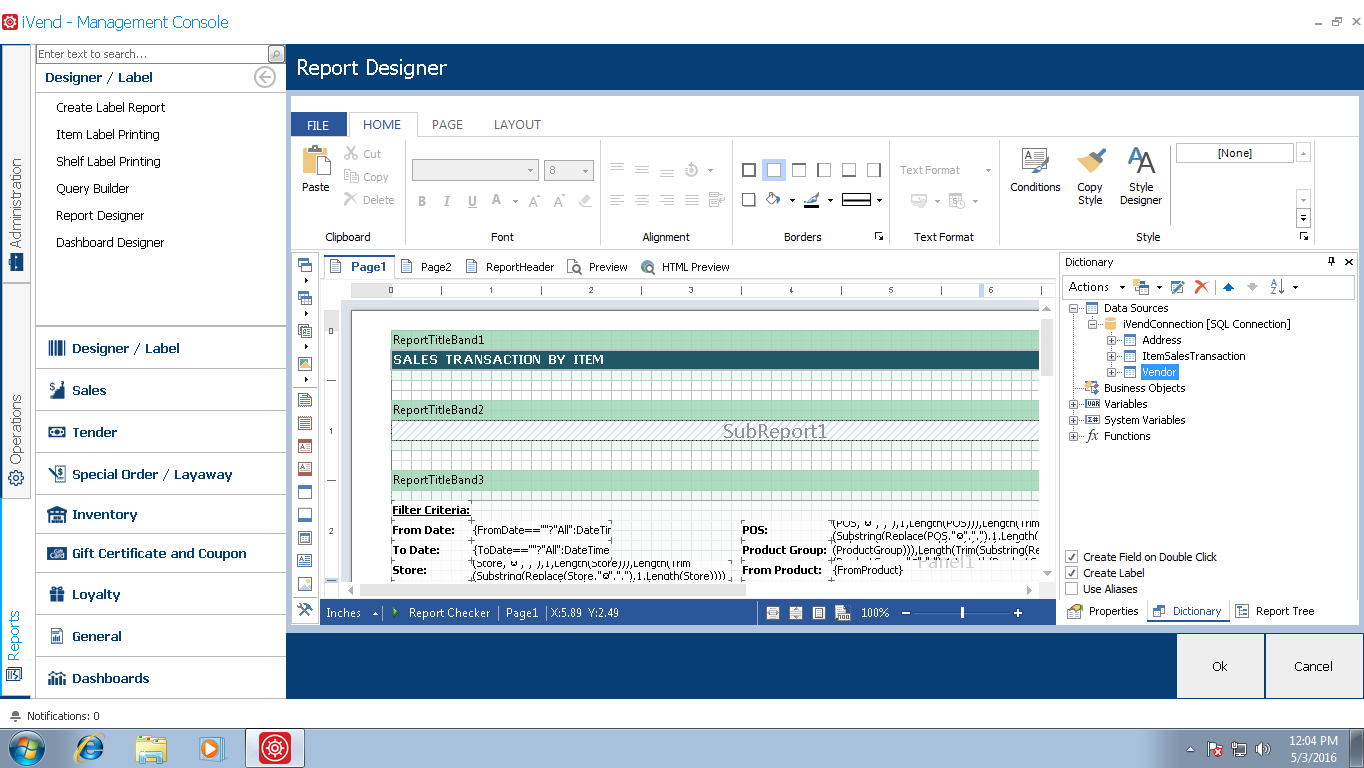

  1. Go to iVend Connection-> Add New DataSource-> Add table. See Screen1


Now make relation in between 2 DataSource and use the columns on report.
​

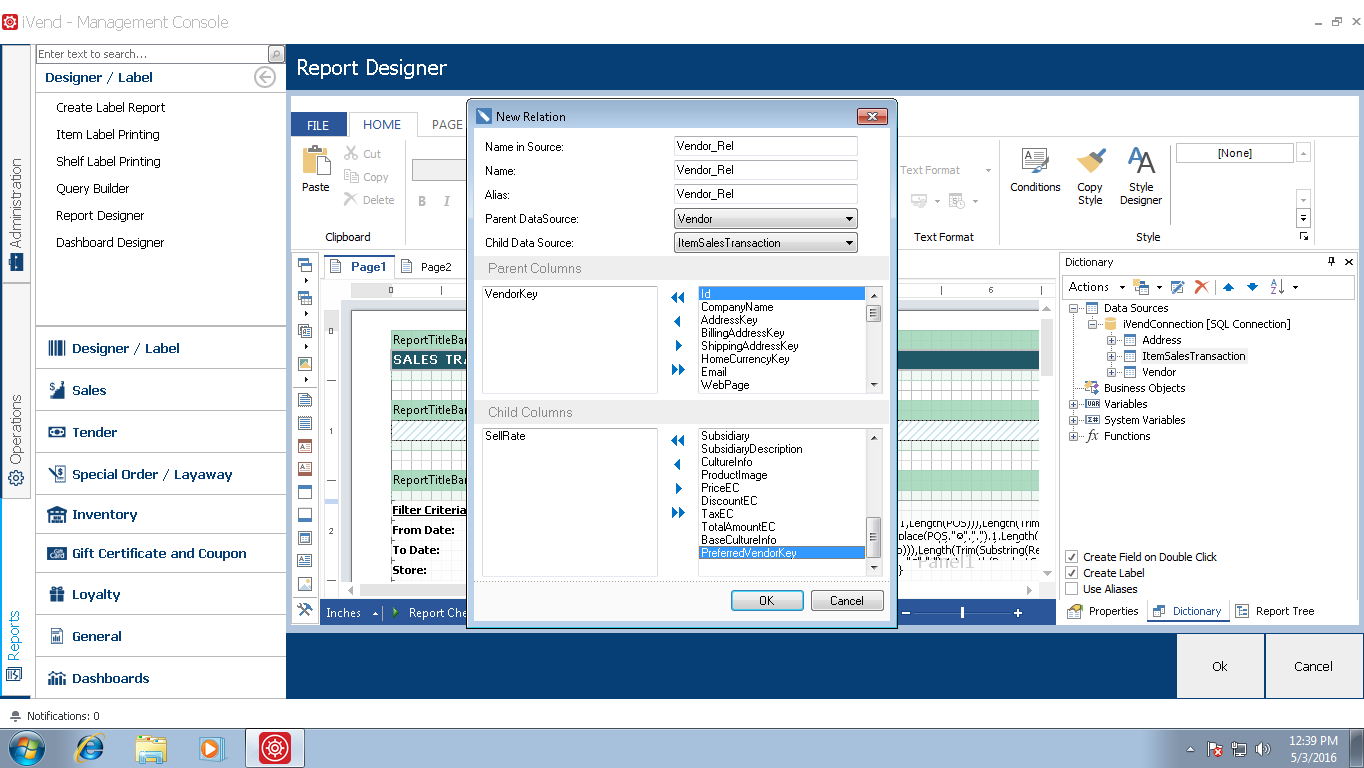

Select first data source and go to New Item-> New Relation-> Select new Data source from “Parent DataSource” & mapped all key values with each other. See screen 2




Now after click on Ok see the relation will be shown in first DataSource which is already exist in report.

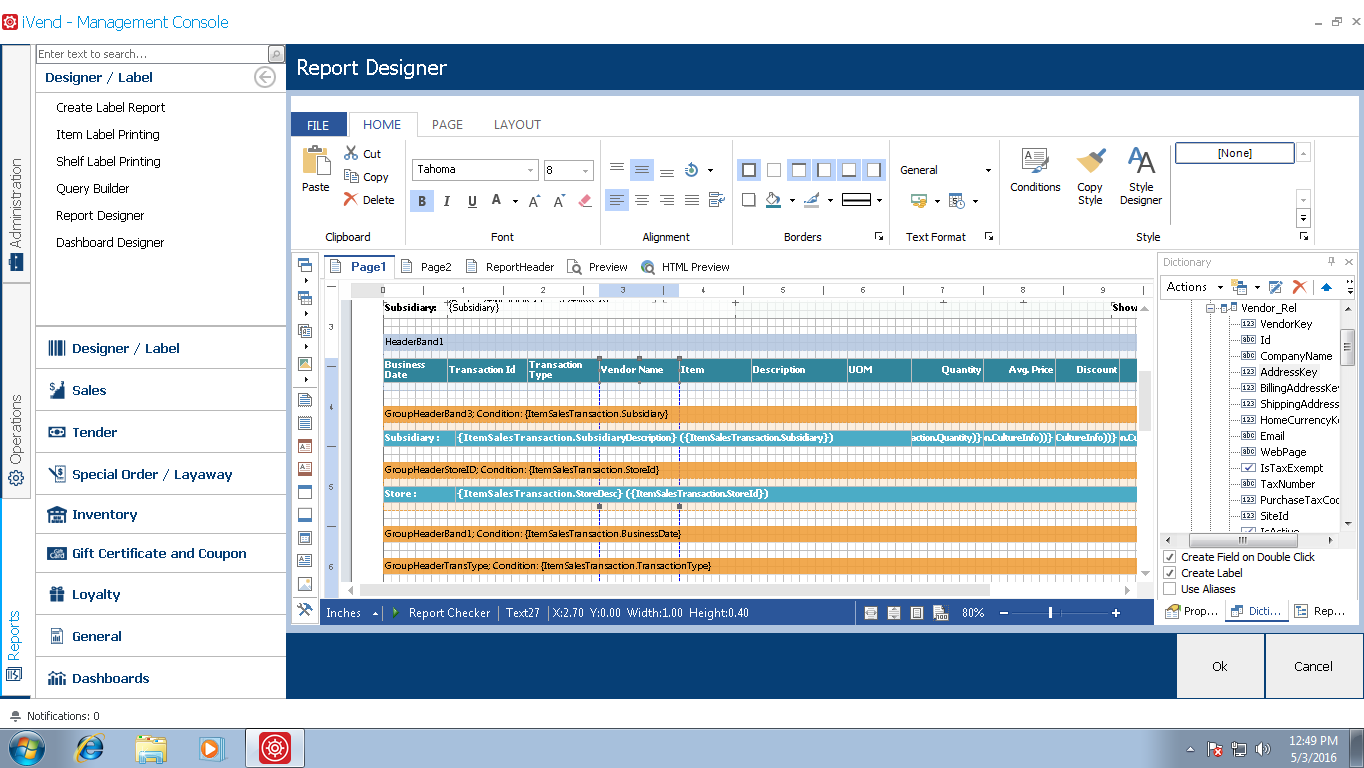

Now add the required column from the relation.
