Problem statement :

How Online POS Operates in Comingle Mode

iVend version :

 6.6 8929

Symptoms:

NA

Resolution / work around :

To configure and run the Online POS in Comingle mode, follow the steps below:

1. Store Configuration

• Create a Store and ensure that “Is OnPremise” is unchecked. (attached the below given retail profile)

2. Retail Profile Configuration

• Create a Retail Profile and ensure that “Allow Online POS with Comingle” is enabled.
  (This setting is required to create an Online POS.)

3. POS Installation and Configuration

• Install only the POS component on the target machine.

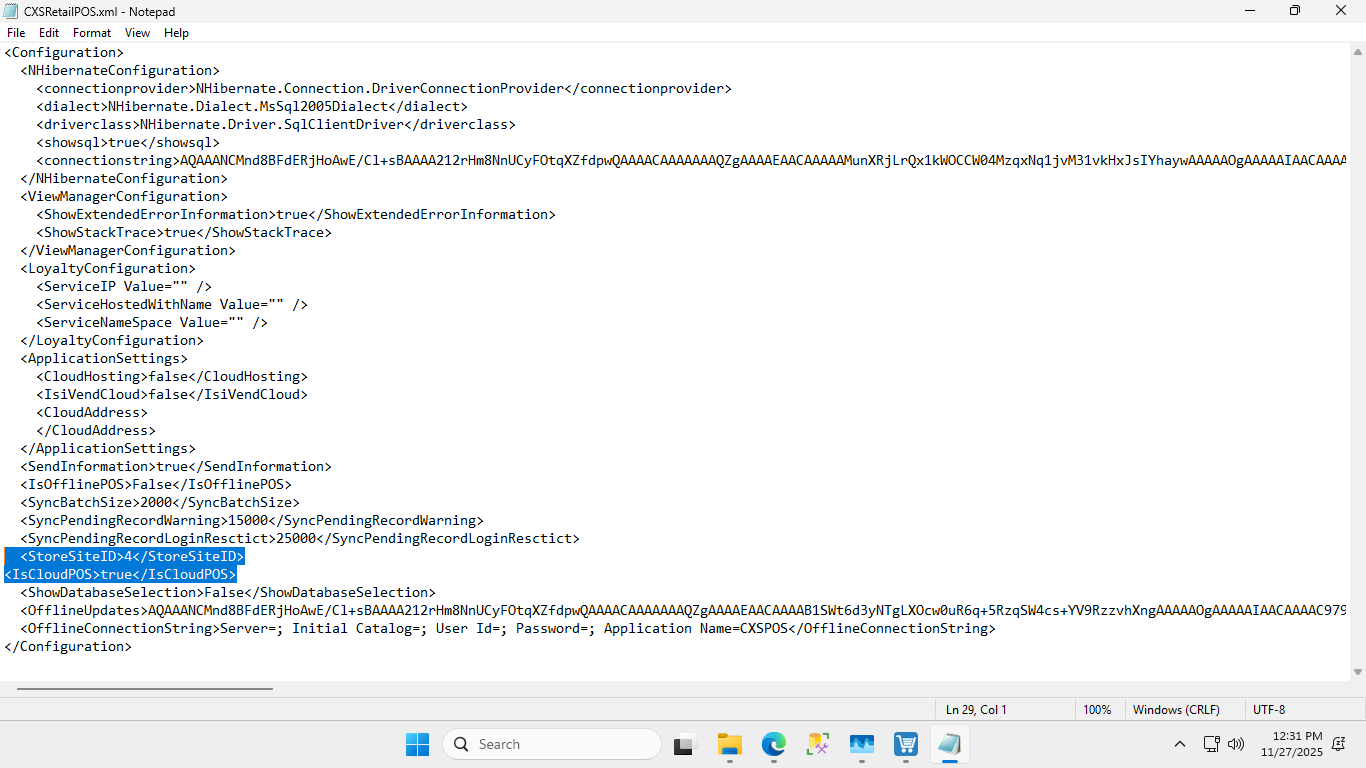

• Update the CXSRetailPOS.xml file with the following tags:

Set IsCloudPOS to true:

<IsCloudPOS>true</IsCloudPOS>

Specify the Comingle Store Site ID:

<StoreSiteID>XXX</StoreSiteID>

4. Connection Manager Configuration

• Provide the Head Office (HO) machine details in the Connection Manager at Online POS machine.

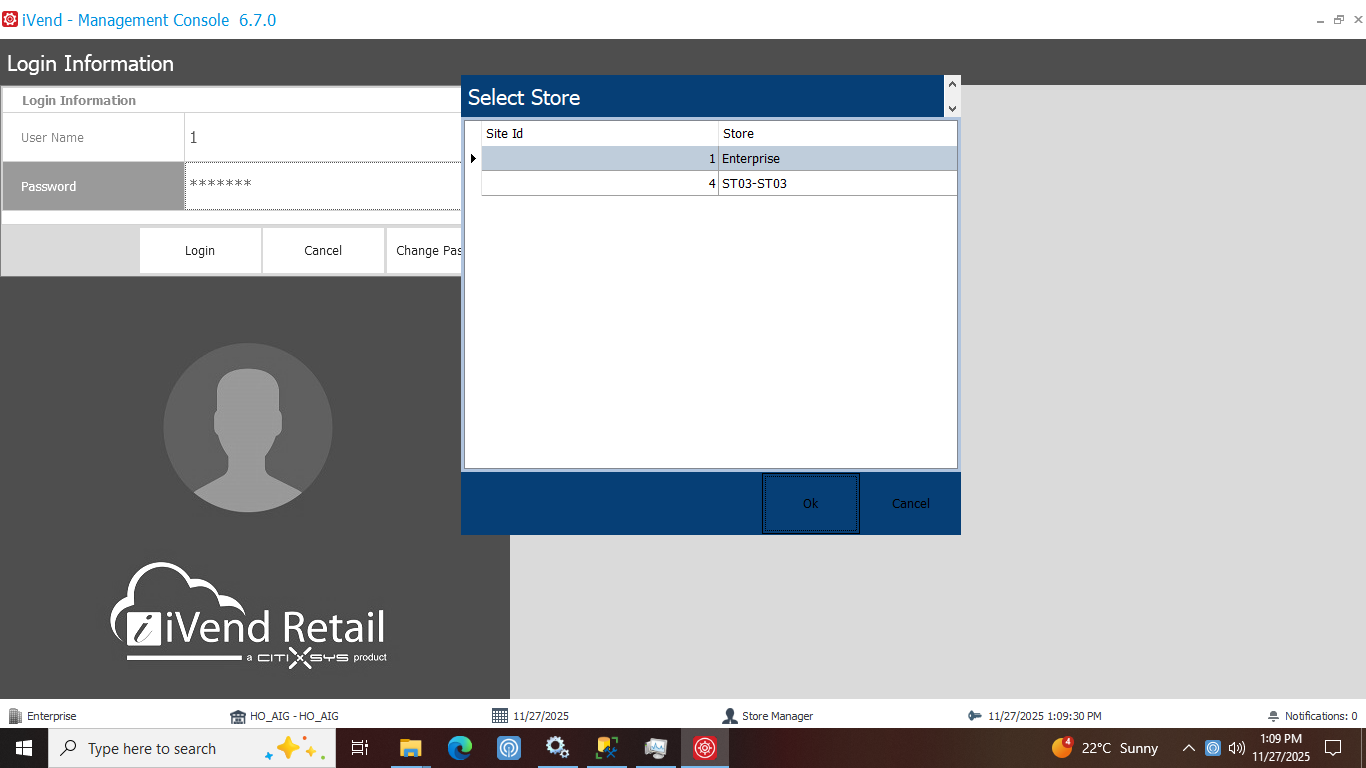

• Once configured, the HO Management Console will display all available stores for login.


5. POS Login

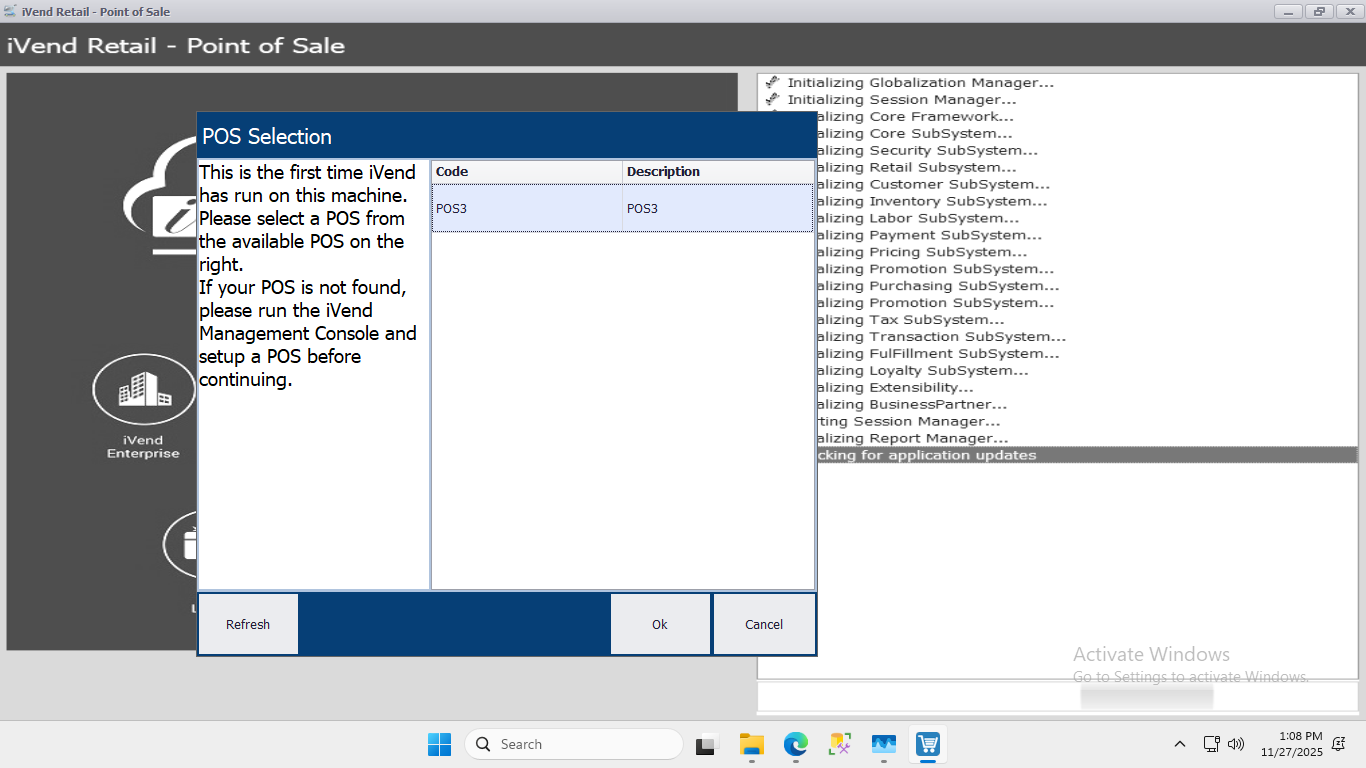

• The Online POS can now be launched and logged in from a separate machine using the configured Comingle mode.
