Display profile : Hide and Enable the field in iVend

Display profile : Hide and Enable the field in iVend

Display Profile

Display profile is used to save customization of a screen for a user or group of users under any role. Every security role will have a display profile attached to it. When a user with particular role logs in the management console, the corresponding customization will be applied to the screen. To create a display profile



To open the screen, Administration > Retail Configuration > Display Profile.



Search Screen

Field

Description/Activity

Search Criteria

Id

Specify the id of the display profile(s) to be searched.

Description

Mention the description of the display profile(s) to be searched.

Search Results

Code

Specify the id of the display profile(s) to be searched.

Description

Mention the description of the display profile(s) to be searched.



Setup Screen



Field/Button

Description/Activity

Id

Enter the id of the display profile. A unique code of a maximum of 20 alphanumeric characters can be entered.

Description

Enter the description of the display profile. A description of a maximum of 100 alphanumeric characters can be entered.

Screen Name

This is view only field which displays the list of screen names for which customization is saved.

Control Name

This is view only field which displays the list of control names and control names for which customization is saved.

[OK]

The button updates changes to the database and closes the screen.

[Cancel]

The button does not save any changes and closes the screen.

[Remove]

This button removes the customization of selected screen.





Apply Display Profile

The security role screen will have a field to apply display profile. Apply desired display profile to the security role.
To open screen - Administration > Authorization > Security Role.



E.g. Scenario:-:  remove columns from inventory view AT POS.

Environment

  iVend 6.6.0 8024





Steps :

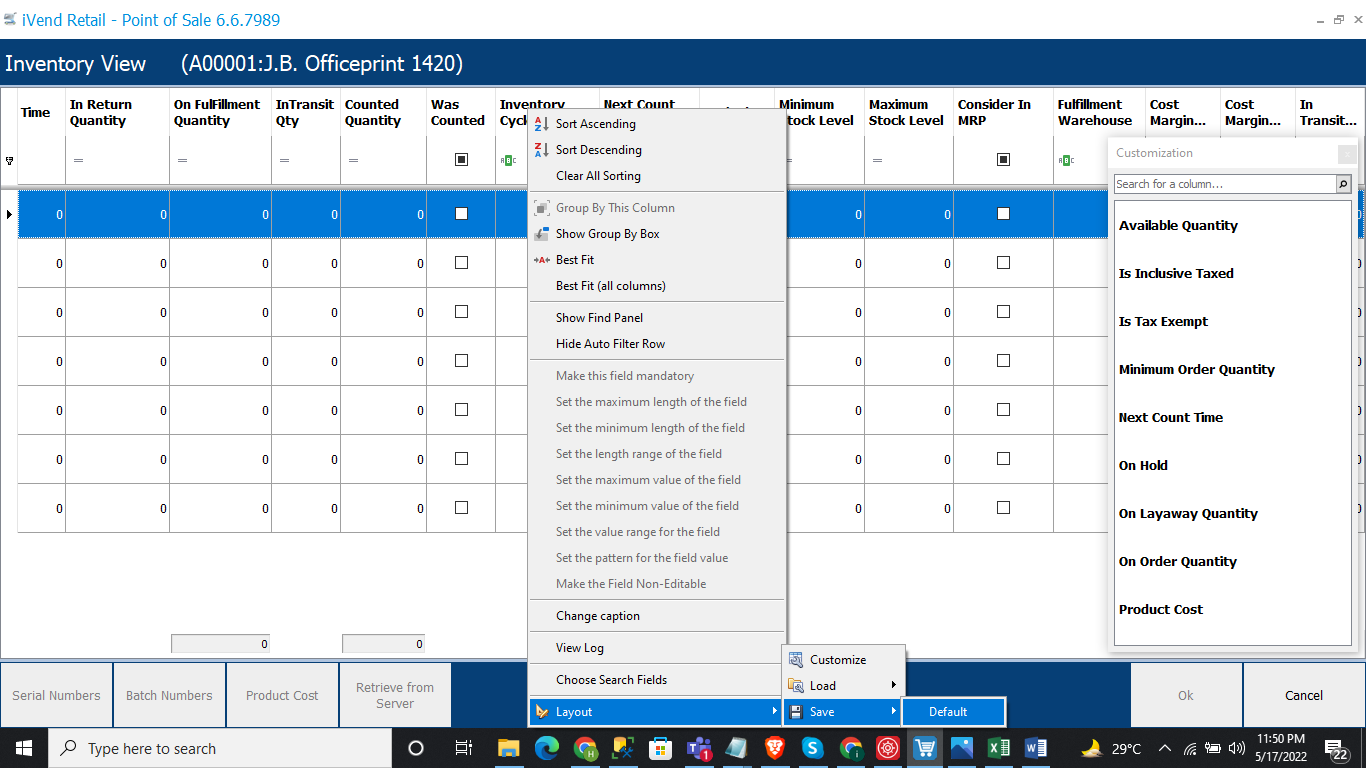

 1.Right-click on the column you want to Hide and select the LAYOUT option >> click on customize

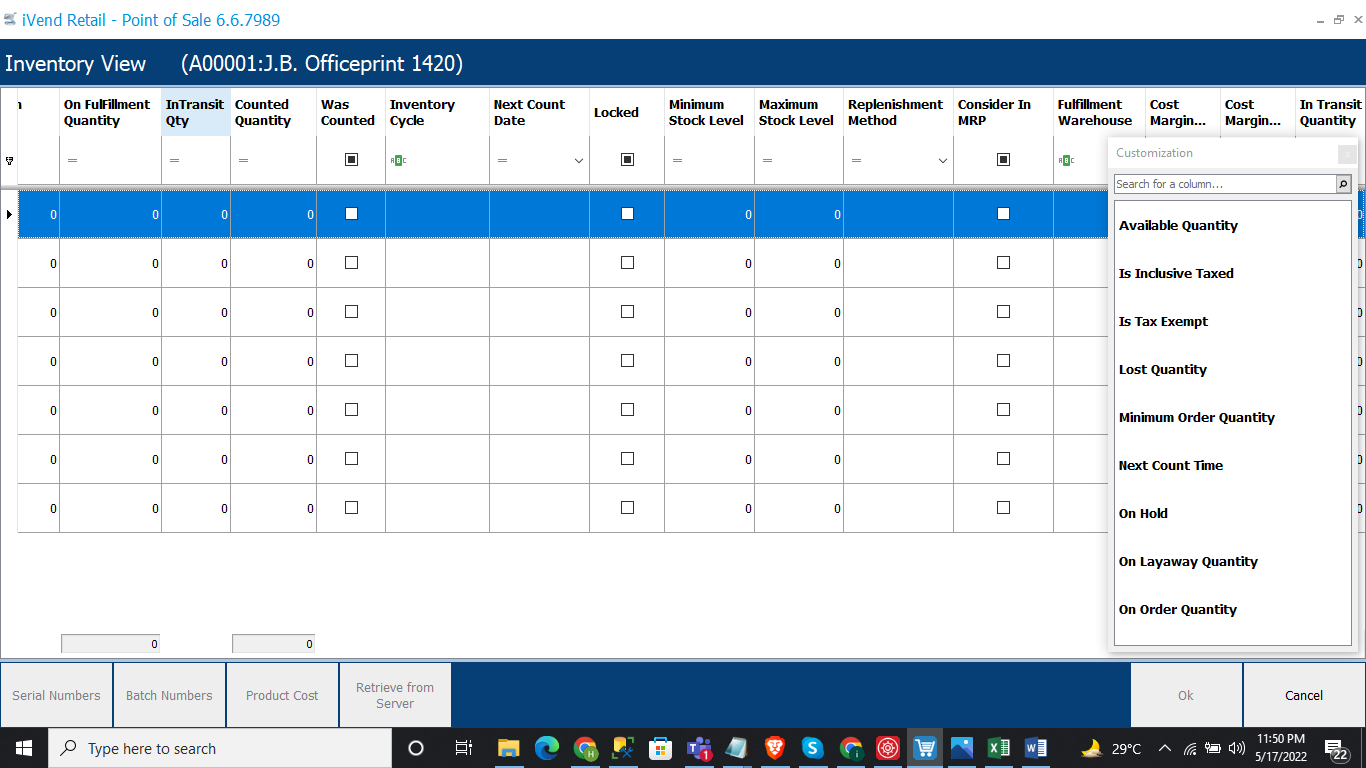

2) Then drag the columns you want to hide on the customization screen.

  1. >> Once you are done with all the columns again right-click on any column >> LAYOUT then select save>> default.
