Applying Conditions and Mathematical Functions on Data in a Receipt Design

Applying Conditions and Mathematical Functions on Data in a Receipt Design

Applying Conditions and Mathematical Functions on Data in a Receipt Design

This article explains how to put conditions and mathematical functions on the data in an iVend POS Receipt design.
Any user with basic XML and programming knowledge can customise the iVend POS receipt.
You can locate the Print Profile setup and definition screen in the iVend Management Console at the following menu location:

Administration > Retail configuration > Print Profile

Choose the available print profile and click the [F4 Edit] button to edit the record.

You can edit the XML format of any of the following POS receipts however this cannot be performed directly within the Print Profile window. The user must export the design via the Receipt Print Format window (Receipt Designer).:

Administration > Retail Configuration > Receipt Print Formats

Select Transaction Receipt and Edit

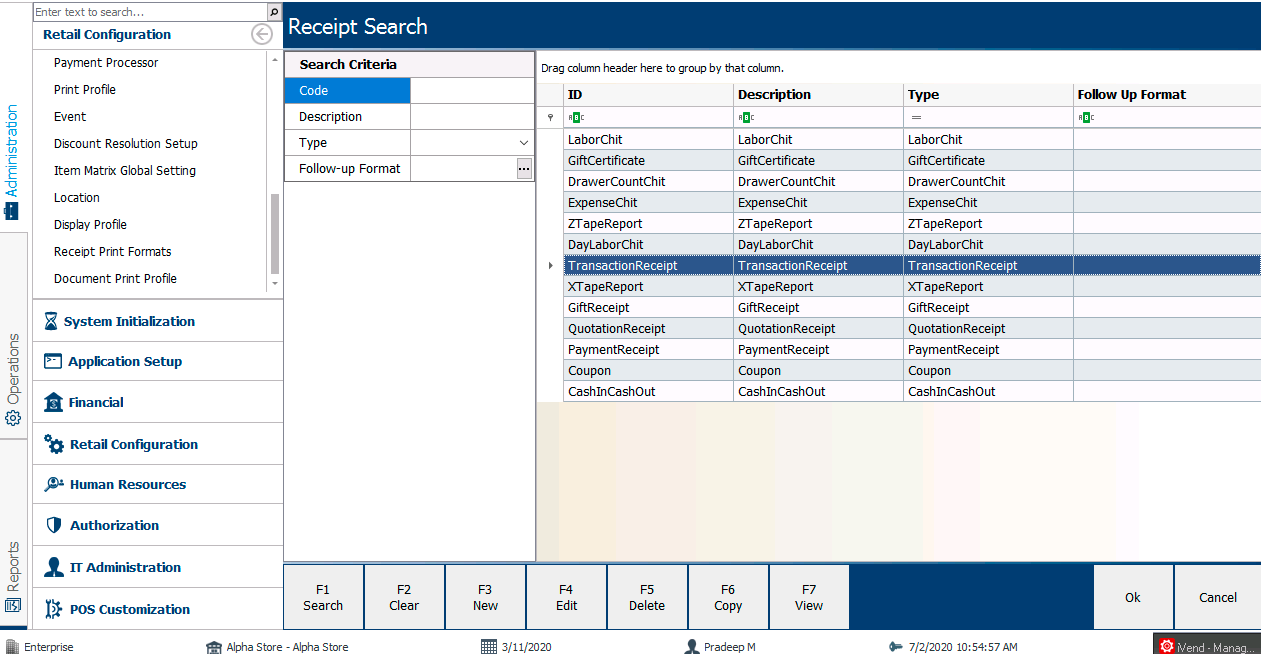

Figure 1 Receipt Search - Transaction Receipt

       On Receipt Designer click on Design button.

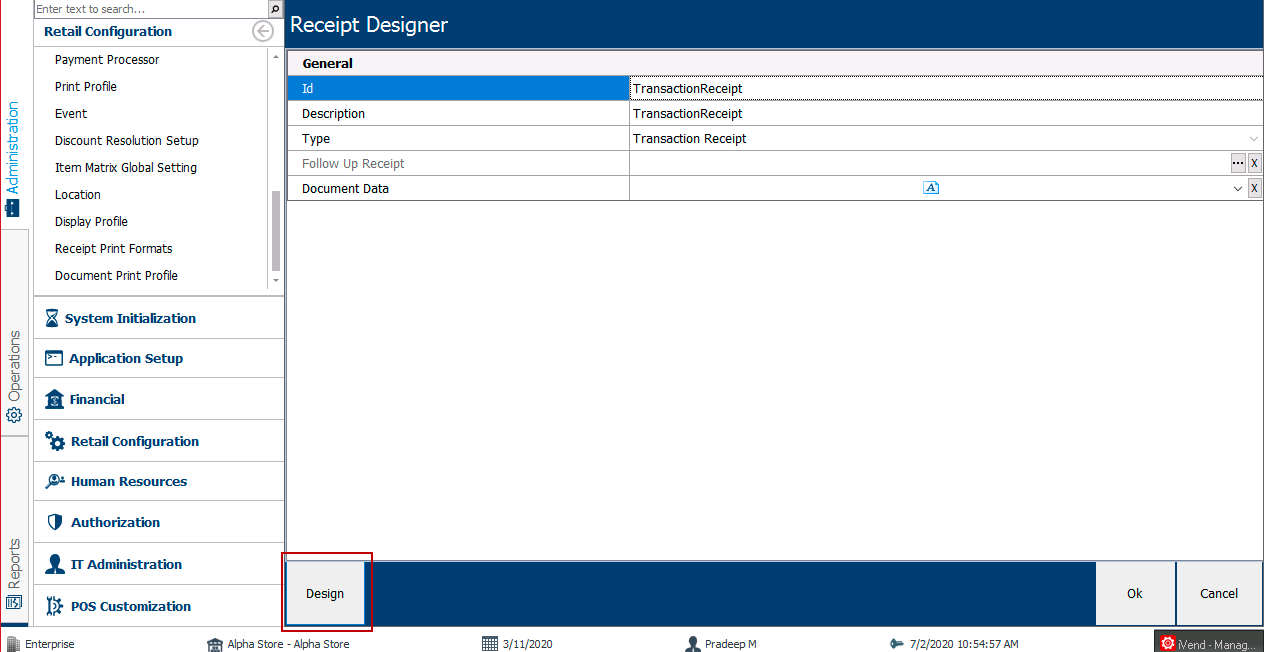

Figure 2 Receipt Designer

On Receipt Designer right pane select Sale Item Drag the if condition from the left pane to the blue colored middle pane. Select Formula on Right pane, the formula settings appears on the bottom pane with formula as Object.

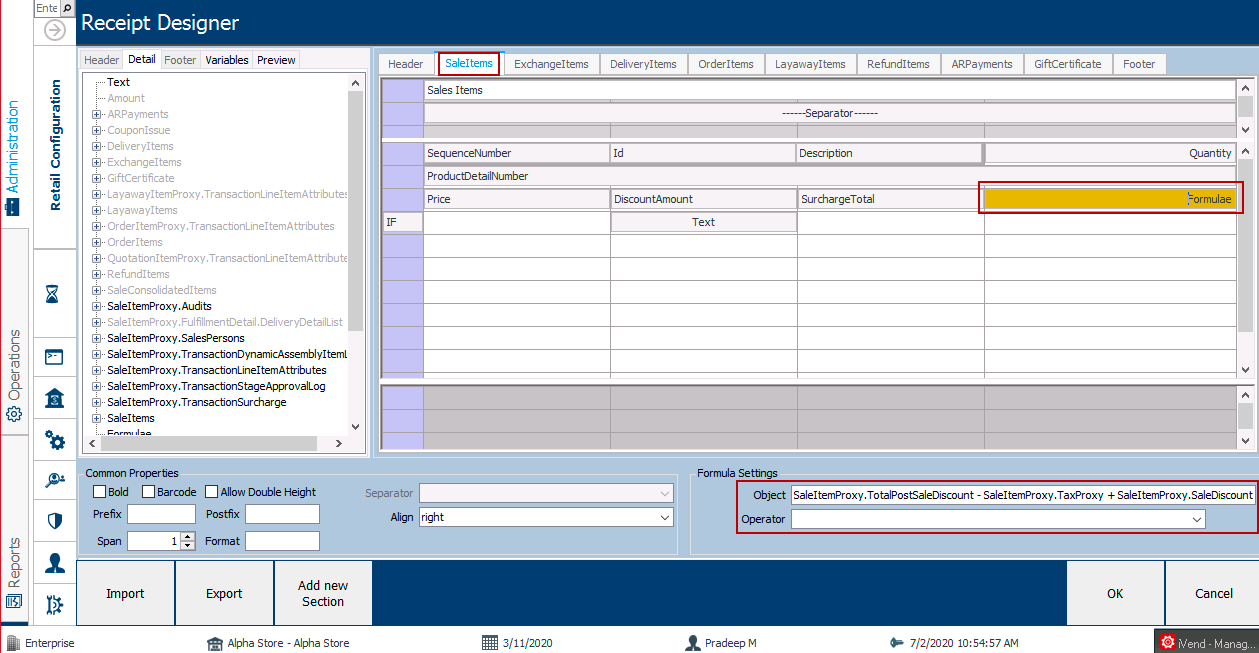

Figure 3 Receipt Designer -Sale Item Formulas



Existing Reports on which the Mathematical calculations can be applied:

1. Labor Chit

2. Day labor Chit

3. Transaction receipt

4. XTape Report

5. Gift Receipt

6. Quotation Receipt

7. Coupon

8. CashInCashOut

9. Gift Certificate

10. DrawerCountChit

11. ExpenseChit

12. ZtapeReport



Apply conditions in the XML Receipt:

On Receipt Designer right pane select Sale Item Drag the if condition from the left pane to the blue colored middle pane. Select Formula on Right pane, the formula settings appears on the bottom pane with formula as Object. Click on Update button to commit the condition.

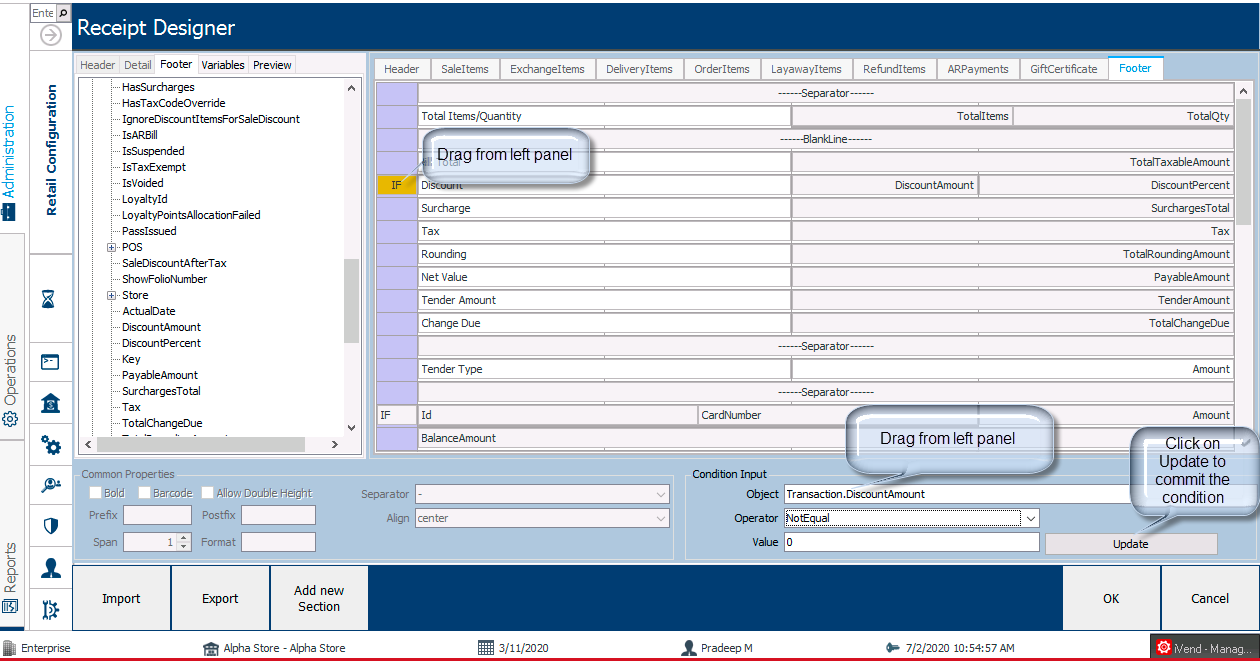

Figure 4 Receipt Designer- Footer

1. “If-else condition”: XML receipt has “If-else condition” to give programming condition to print the data.

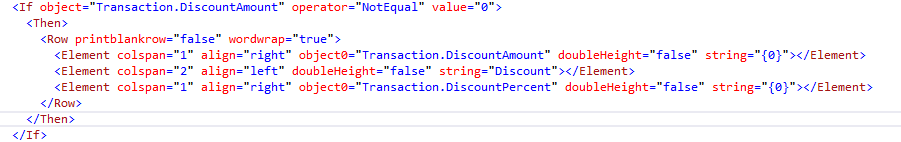

 Sample Condition 1 Compare with fix value

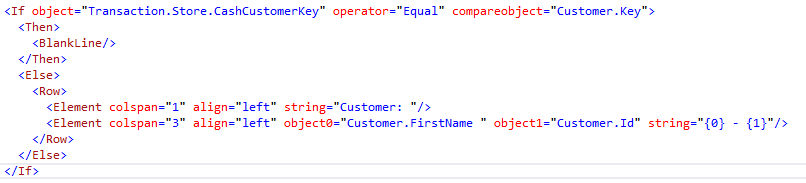

Sample Condition 2 Compare object value:

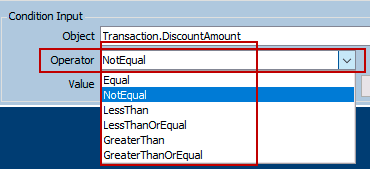

Figure 5 Condition Input- Operator option list
